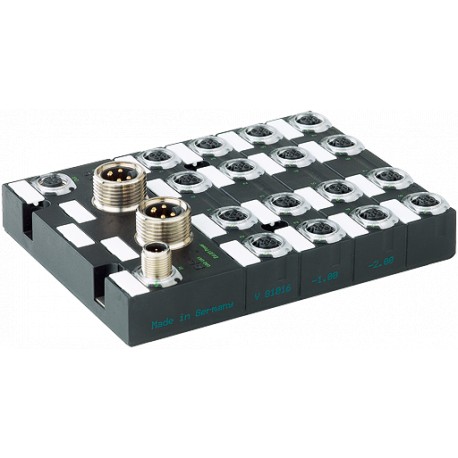

56641 MURRELEKTRONIK CUBE67 DIO16 DO16 E 16XM12 (1,6/2A)
$0.00USD
3607 in stock
Key Specifications
EAN:Four trillion forty eight billion eight hundred seventy nine million forty eight thousand four hundred twenty two
Type:for sensors 3-wire or contactor mechanical, PNP
eClass:Twenty seven million two hundred forty two thousand six hundred four
Weight::0.6 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Four trillion forty eight billion eight hundred seventy nine million forty eight thousand four hundred twenty two |
| Type | for sensors 3-wire or contactor mechanical, PNP |
| eClass | Twenty seven million two hundred forty two thousand six hundred four |
| Weight: | 0.6 kg |
| Field Bus | by linking the internal system |
| I/O slots | M12 (female) 5-pole, coding A |
| Consumption | max. 50 mA |
| No.of item: | Fifty six thousand six hundred forty one |
| Input filter | 1 ms |
| LED indicator | US: sensor supply and internal power supply (green: OK); UA: power of the actuators (green: OK) |
| Packaging unit | One |
| Diagnosis by BUS | per module and channel |
| Mode of fixation | Mounting screws 4 holes |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit proof and overload |
| Warning actuator | per channel via LED and BUS |
| Diagnosis by LEDS | per module and channel |
| Temperature range | 0...+55 °C (temp. storage -20...+75 °C) |
| country of origin | OF |
| Degree of protection | IP67 |
| Dimensions H × L × P | 151.5×115.5×35.5 mm |
| State of communication | LED |
| Monitoring - no voltage | yes |
| Pin 2 (8 × M12 left side) | Input/Output/Diagnostic |
| Pin 4 (8 × M12 left side) | Input/Output |
| Short-circuit and overload | yes |
| Pin 2 (8 × M12 right side) | Output |
| Pin 4 (8 × M12 right side) | Output |
| Number of the customs tariff | Eighty five million three hundred eighty nine thousand ninety nine |
| Power actuator(8×M12 right) | 24 V DC (EN 61131-2), via connector 7/8" (max. 2 × 9) |
| Power sensor-system/actuator | by linking the internal system (max. 2×4 A) |
| Charge lamp (8×M12 left side) | 30 W |
| Charge lamp (8×M12 right side) | 40 W |
| Monitoring - inadequate tension | yes |
| Power actuator(8×M12 left side) | 24 V DC (EN 61131-2), via connector 7/8" (max. 2 × 9) |
| Switched current per output (8×M12 right) | max. 2 A, short-circuit proof and overload (simultaneity factor 50% per location) |
| Switched current per output (8×M12 left side) | max. 1.6 A, short-circuit proof and overload (simultaneity factor 50% per location) |
