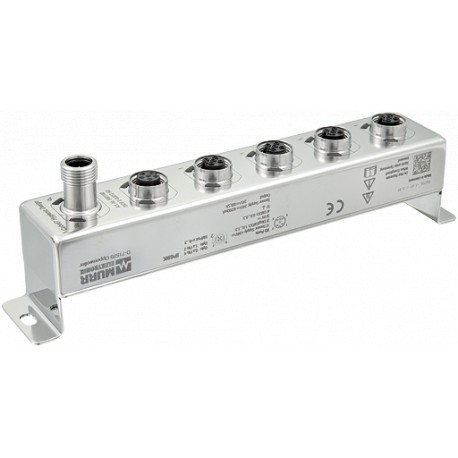

5661160 MURRELEKTRONIK CUBE67 Hygienic Design I/O EXTENSION MODULE
$0.00USD
3449 in stock
Key Specifications
EAN:4048879697309
Type:for 3-wire sensors or mechanical switches, PNP
PIN 2:Input/Output/Diagnostic
PIN 4:Input/Output
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879697309 |
| Type | for 3-wire sensors or mechanical switches, PNP |
| PIN 2 | Input/Output/Diagnostic |
| PIN 4 | Input/Output |
| eClass | 27242604 |
| Weight: | 0.242 kg |
| Art.No.: | 5661160 |
| Fieldbus | via internal system connection |
| I/O ports | M12 (female) 5-pole, A-coded |
| Lamp load | 10 W |
| Protection | IP69K |
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
| Input filter | 1 ms |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Actuator warning | per channel via LED and BUS |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), via system connection (max. 4 A) |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Current consumption | max. 50 mA |
| Communication status | via LED |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 151×30×34.5 mm |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 0.5 A (short-circuit and overload protected) |
| Sensor-system/actuator supply | via internal system connection (max. 2×4 A) |
Product Description
CUBE67 Hygienic Design I/O EXTENSION MODULE8 multifunction channels
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
