In Stock Hot Product
56531

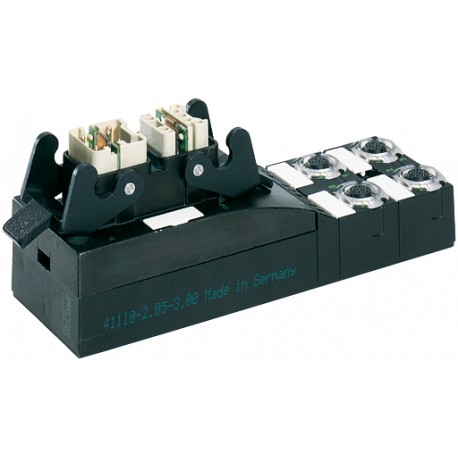

56531 MURRELEKTRONIK CUBE67 BUS NODES
$0.00USD
4853 in stock
Key Specifications
EAN:4048879048613
eClass:27242608
Weight::0.45 kg
Art.No.::56531
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879048613 |
| eClass | 27242608 |
| Weight: | 0.45 kg |
| Art.No.: | 56531 |
| Fieldbus | DESINA® ECOFAST® |
| Addressing | Rotary switch 0...99 |
| Protection | IP65 |
| Packaging unit | 1 |
| Module capacity | max. 16 |
| Mounting method | 2-hole screw mounting |
| Operating voltage | 24 V DC (EN 61131-2) |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| country of origin | DE |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Current consumption | max. 120 mA |
| Communication status | via LED and BUS |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 151×50×50.3 mm |
| Monitoring - no voltage | yes |
| Internal system connection | M12, 6 pole; max. 4 A |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Sensor-system/actuator supply | DESINA® ECOFAST® |
Product Description
CUBE67 BUS NODESProfibus DP
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
