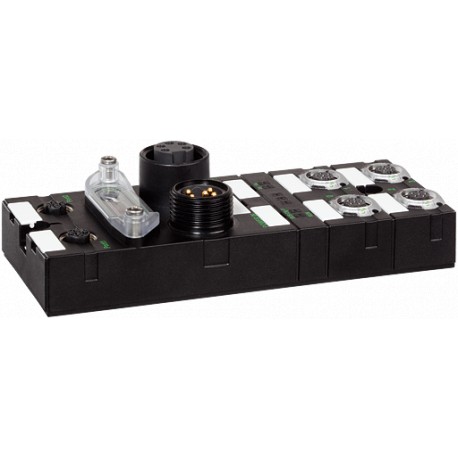

56526 MURRELEKTRONIK CUBE67+ BUS NODE
$0.00USD
3986 in stock
Key Specifications
EAN:4048879294027
eClass:27242608
Weight::0.36 kg
Art.No.::56526
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879294027 |
| eClass | 27242608 |
| Weight: | 0.36 kg |
| Art.No.: | 56526 |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
| Addressing | DCP |
| Protection | IP67 |
| I/O capacity | max. 1 024 Byte (Input), max. 1 024 Byte (Output) |
| Specification | V2.2, Conformance Class B |
| Packaging unit | 1 |
| Module capacity | max. 32 |
| Mounting method | 2-hole screw mounting |
| Operating voltage | 24 V DC (EN 61131-2) |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| country of origin | DE |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Current consumption | max. 200 mA |
| Communication status | via LED and BUS |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 151×62×40.5 mm |
| Monitoring - no voltage | yes |
| Machine Option Management | yes |
| Internal system connection | 4 × M12 (female) A-coded, 6-pole, 2 × max. 4 A |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| No. of masterports (IO-Link) | max. 128 |
| Sensor-system/actuator supply | 7/8", 5-pole, 2 × max. 8 A |
Product Description
CUBE67+ BUS NODEProfiNet IO
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
