In Stock Hot Product
56477

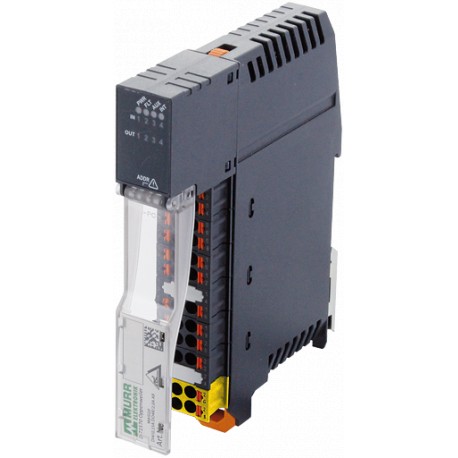

56477 MURRELEKTRONIK MASI20 I/O MODULE RELAY
$0.00USD
3681 in stock
Key Specifications
EAN:4048879705271
Type:for 3-wire sensors or mechanical switches, PNP
eClass:27242604
Weight::0.125 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879705271 |
| Type | for 3-wire sensors or mechanical switches, PNP |
| eClass | 27242604 |
| Weight: | 0.125 kg |
| Art.No.: | 56477 |
| Addressing | via built-in address port or master |
| Connection | Push-In spring clamp terminals, 0.2...2.5 mm² (0.25...1.5 mm²) |
| Protection | IP20 |
| Address range | 1...31 via address port |
| Input current | max. 5.6 mA |
| Total current | max. 8 A |
| Packaging unit | 1 |
| Supply voltage | alternatively (switchable) from AS-Interface or from 24 V DC (EN 61131-2) by additional supply |
| Mounting method | DIN-rail mountable (EN 60715) |
| Sensor supply US | max. 150 mA externally or from AS Interface, (short-circuit and overload protected) |
| Temperature range | -25...+70 °C (storage temperature -25...+85 °C) |
| country of origin | SG |
| Diagnostic via LED | per module |
| Communication status | via LED |
| customs tariff number | 85176200 |
| Dimensions H × W × D | 125×19×99 mm |
| Monitoring - no voltage | yes |
| Profile (IO/ID/ID2 code) | S-7.0.E |
| Bus voltage (AS-Interface) | 26.5...31.6 V DC |
| Switching current per output | 2 A |
| Total current (AS-Interface) | max. 230 mA |
Product Description
MASI20 I/O MODULE RELAY4 digital inputs, 4 digital relay outputs
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
