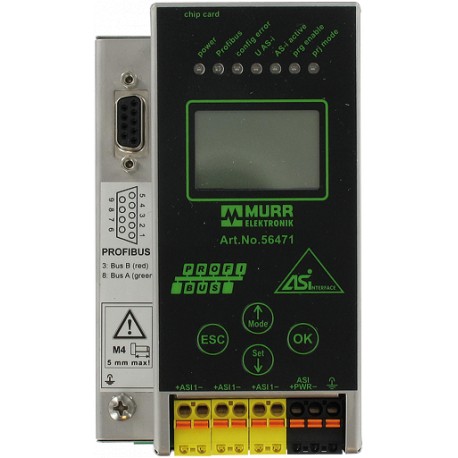

56471 MURRELEKTRONIK Gateway Profibus-DP/AS-i, 1 Master, P24
$0.00USD
3600 in stock
Key Specifications
:Gateway-Singlemaster
EAN:4048879600415
Type:PROFIBUS DP slave
eClass:27242608
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Gateway-Singlemaster | |
| EAN | 4048879600415 |
| Type | PROFIBUS DP slave |
| eClass | 27242608 |
| Weight: | 0.529 kg |
| Art.No.: | 56471 |
| Fieldbus | SUB-D9 |
| Standards | EN 61131-2, EN 62026-2, EN 61000-6-2, EN 61000-6-4 |
| Cycle time | 150 µs × (number of slaves + 2) |
| Protection | IP20 |
| No. of slaves | max. 62 |
| Specification | 3.0 |
| Transfer rate | 9.6...1 2000 kBaud, automatic detection |
| Bus connection | via pluggable spring clamp plug-in terminals on the front 0.5...1.5 mm² |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Operating current | max. 250 mA (AS-Interface) |
| Operating voltage | 24 V DC (20...30.6 V DC - PELV) |
| Temperature range | 0...+55 °C (storage temperature -25...+85 °C) |
| country of origin | DE |
| customs tariff number | 85176200 |
| Test isolation voltage | min. 500 V |
| Serial interface/diagnostic | None |
Product Description
Gateway Profibus-DP/AS-i, 1 Master, P24Spec. 3.0, Power 24
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
