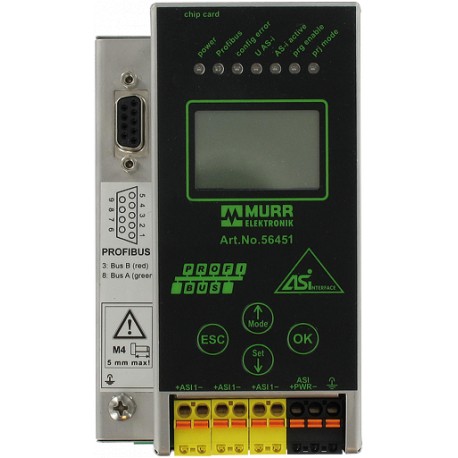

56451 MURRELEKTRONIK Gateway Profibus-DP/AS-i, 1 Master
$0.00USD
4617 in stock
Key Specifications
EAN:4048879048767
eClass:27242208
Buttons:4 (mode/set/OK/ESC)
Weight::0.503 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879048767 |
| eClass | 27242208 |
| Buttons | 4 (mode/set/OK/ESC) |
| Weight: | 0.503 kg |
| Art.No.: | 56451 |
| Fieldbus | SUB-D9 |
| Functions | Illustration of AS-Interface slaves as I/O process data in PROFIBUS DP, full diagnostic configuration via DP-master |
| Standards | EN 50295 |
| Addressing | via buttons on the gateway or PROFIBUS DP addresses 1...126 adjustable (default 3) |
| Cycle time | 150 µs × (number of slaves + 2) |
| Protection | IP20 |
| No. of slaves | max. 62 |
| Specification | 3.0 |
| Transfer rate | 9.6...1 2000 kBaud, automatic detection |
| Bus connection | via pluggable spring clamp plug-in terminals on the front 0.5...1.5 mm² |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Operating current | max. 70 mA from AS-Interface (short-circuit and overload protected) |
| Operating voltage | 30 V DC |
| Temperature range | 0...+55 °C (storage temperature -20...+85 °C) |
| country of origin | DE |
| customs tariff number | 85176200 |
| Dimensions H × W × D | 120×75×83 mm |
| Test isolation voltage | min. 500 V |
| Serial interface/diagnostic | PS2/RS232 |
Product Description
Gateway Profibus-DP/AS-i, 1 MasterSpec. 3.0, Diagnosis RS232
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
