In Stock Hot Product
56446

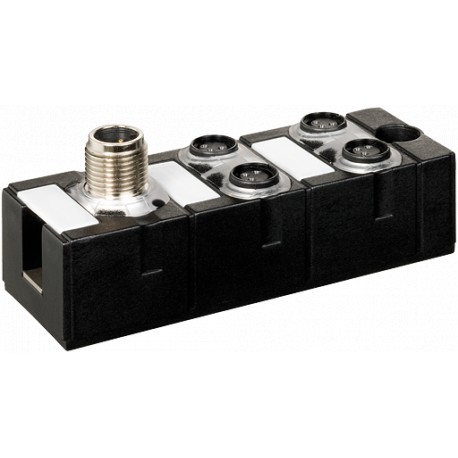

56446 MURRELEKTRONIK MASI68 I/O MODUL
$0.00USD
3085 in stock
Key Specifications
EAN:4048879373524
Type:for 3-wire sensors or mechanical switches, PNP
eClass:27242604
Weight::0.127 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879373524 |
| Type | for 3-wire sensors or mechanical switches, PNP |
| eClass | 27242604 |
| Weight: | 0.127 kg |
| Art.No.: | 56446 |
| Fieldbus | A-coded |
| I/O ports | M8, 3-pole |
| Addressing | via master or M12 connection and programming device |
| Protection | IP68 |
| Address range | 1...62 (1...31 A or B) |
| Total current | max. 250 mA |
| Packaging unit | 1 |
| Supply voltage | 24 V DC external (18...30.2 V DC) EN 61131-2 |
| Mounting method | screw fixing |
| Sensor supply US | max. 100 mA from AS-Interface (short-circuit and overload protected) |
| Temperature range | -20...+60 °C (storage temperature -20...+70 °C) |
| country of origin | DE |
| Diagnostic via LED | per module |
| Communication status | via LED |
| customs tariff number | 85176200 |
| Monitoring - no voltage | yes |
| Profile (IO/ID/ID2 code) | S-7.A.E |
| Bus voltage (AS-Interface) | 26.5...31.6 V DC |
| Switching current per output | max. 0.5 A (short-circuit and overload protected) |
Product Description
MASI68 I/O MODUL 2 digital inputs and 2 digital outputs
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
