In Stock Hot Product
56445

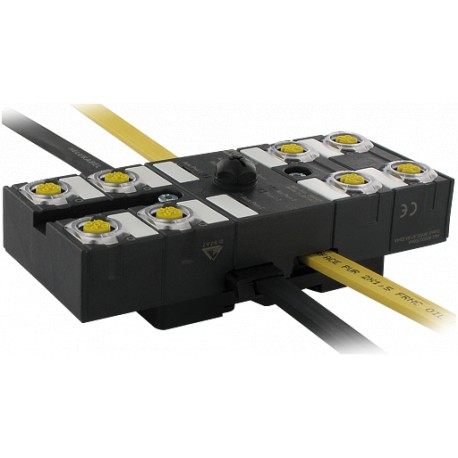

56445 MURRELEKTRONIK MASI67 I/O MODUL
$0.00USD
4885 in stock
Key Specifications
EAN:4048879378321
eClass:27242604
Weight::0.34 kg
Art.No.::56445
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879378321 |
| eClass | 27242604 |
| Weight: | 0.34 kg |
| Art.No.: | 56445 |
| Addressing | via built-in address port or master |
| Protection | IP67 |
| Address range | 1...62 (1...31 A or B) |
| Total current | max. 100 mA |
| Packaging unit | 1 |
| Supply voltage | 24 V DC external (18...30.2 V DC) EN 61131-2, connection via black AS-Interface profile cable |
| Mounting method | DIN-rail mountable (EN 60715) or screw fixing |
| Temperature range | -20...+60 °C (storage temperature -25...+70 °C) |
| country of origin | DE |
| Diagnostic via LED | per module |
| Communication status | via LED |
| customs tariff number | 85369010 |
| Dimensions H × W × D | 94×60×39 mm |
| Monitoring - no voltage | yes |
| Profile (IO/ID/ID2 code) | S-7.A.7 |
| Bus voltage (AS-Interface) | 26.5...31.6 V DC |
| Switching current per output | max. 1.6 A (short-circuit and overload protected) |
| Double assignment of M12 female | yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
