In Stock Hot Product
56439

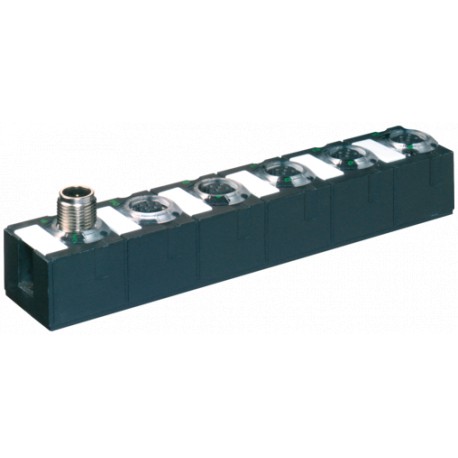

56439 MURRELEKTRONIK MASI68 DI4/0,19A DO4/1A AB E 4xM12
$0.00USD
3623 in stock
Key Specifications
Weight::0.194 kg
Art.No.::56439
Country of origin::CZ
Depth (Technical Data):34,5 mm
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight: | 0.194 kg |
| Art.No.: | 56439 |
| Country of origin: | CZ |
| Depth (Technical Data) | 34,5 mm |
| Width (Technical Data) | 30 mm |
| Height (Technical Data) | 151 mm |
| Diagnostic (Technical Data) | No voltage |
| Type input (Technical Data) | PNP, for 3-wire sensors or mechanical switches |
| Mounting method (Technical Data) | screwed |
| Diagnostic via LED (Technical Data) | per module |
| Overload resistant (Technical Data) | yes |
| Total current max. (Technical Data) | 4 A |
| Profile (IO.ID.ID2) (Technical Data) | S-7.A.7 |
| Slave address range (Technical Data) | (0), 1 A...31 A, 1 B...31 B |
| Address setting type (Technical Data) | M12 connection and programming device, Master |
| Short-circuit protected (Technical Data) | yes |
| Storage temperature max. (Technical Data) | 70 °C |
| Storage temperature min. (Technical Data) | -20 °C |
| Operating temperature max. (Technical Data) | 60 °C |
| Operating temperature min. (Technical Data) | -20 °C |
| Output current per pin max. (Technical Data) | 1 A |
| Current carrying capacity max. (Technical Data) | 0,19 A |
| Bus voltage AS-Interface DC max. (Technical Data) | 31,6 V |
| Bus voltage AS-Interface DC min. (Technical Data) | 26,5 V |
| Current consumption AS-i port max. (Technical Data) | 250 mA |
| Degree of protection (EN IEC 60529) (Technical Data) | IP68 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
