In Stock Hot Product
56413

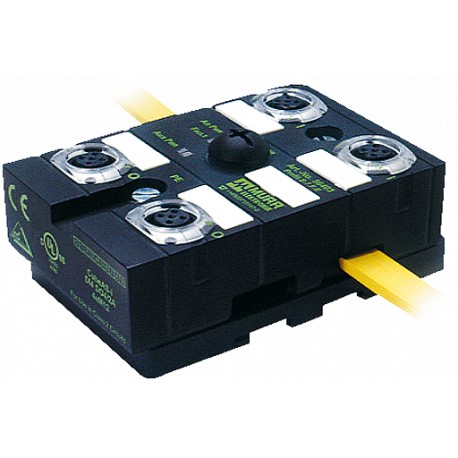

56413 MURRELEKTRONIK MASI67 I/O MODULE
$0.00USD
4046 in stock
Key Specifications
EAN:4048879049009
Type:for 3-wire sensors or mechanical switches, PNP
eClass:27242604
Weight::0.18 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879049009 |
| Type | for 3-wire sensors or mechanical switches, PNP |
| eClass | 27242604 |
| Weight: | 0.18 kg |
| Art.No.: | 56413 |
| Y-wiring | yes |
| Addressing | via built-in address port or master |
| Protection | IP67 |
| Address range | 1...62 (1...31 A or B) |
| Total current | max. 250 mA |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) or screw fixing |
| Sensor supply US | max. 170 mA from AS-Interface (short-circuit and overload protected) |
| Temperature range | -20...+60 °C (storage temperature -20...+70 °C) |
| country of origin | DE |
| Diagnostic via BUS | yes |
| Diagnostic via LED | per module |
| Communication status | via LED |
| customs tariff number | 85176200 |
| Dimensions H × W × D | 94×60×39 mm |
| Profile (IO/ID/ID2 code) | S-0.A.2 |
| Bus voltage (AS-Interface) | 26.5...31.6 V DC |
Product Description
MASI67 I/O MODULE4 digital inputs
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
