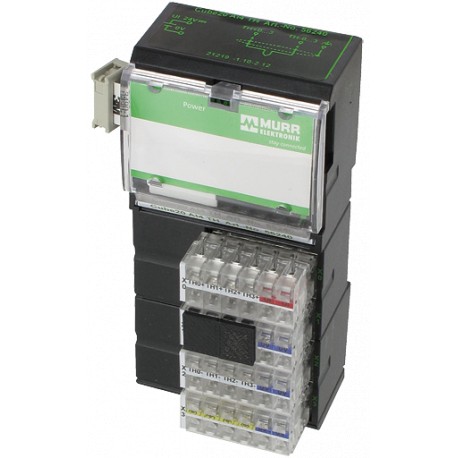

56240 MURRELEKTRONIK CUBE20 ANALOG INPUT MODULE
$0.00USD
3404 in stock
Key Specifications
EAN:4048879049177
Type:K, N, E, J, R
eClass:27242601
Weight::0.179 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879049177 |
| Type | K, N, E, J, R |
| eClass | 27242601 |
| Weight: | 0.179 kg |
| Accuracy | max. ±2%, cold junction compensation |
| Art.No.: | 56240 |
| Fieldbus | Ribbon cable connection |
| I/O ports | 12 × spring clamp plug-in terminals, max. 2.5 mm² |
| Connection | 2-wire input; TH+x, TH-x |
| Protection | IP20 |
| Module supply | via system connection |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Temperature range | 0...+55 °C (storage temperature -20...+85 °C) |
| country of origin | DE |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module |
| Current consumption | max. 25 mA from system, max. 45 mA externally (UI) |
| Resolution (analog) | 15 Bit + sign |
| Communication status | via LED |
| customs tariff number | 85176200 |
| Dimensions H × W × D | 117×56×47 mm |
| Monitoring - no voltage | no |
| Conversion time (analog) | max. 300 ms (per channel) |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Sensor-system/actuator supply | 4 × spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A) |
| Wire break upper/lower limit overload | per channel via LED and BUS |
Product Description
CUBE20 ANALOG INPUT MODULE4 analog inputs
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
