In Stock Hot Product
562.16865

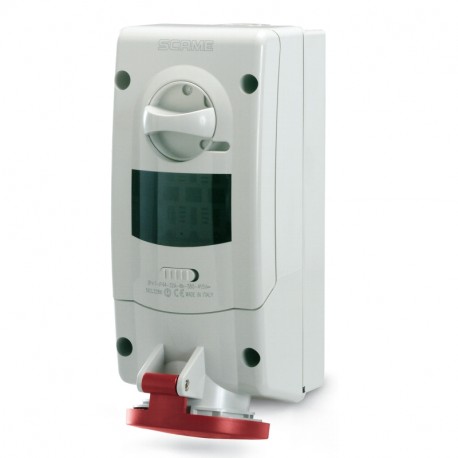

562.16865 SCAME INTERLOCKED SOCKET 3P+E IP44 16A 11h
$0.00USD
3978 in stock
Key Specifications
Poles::3P+E
Colour::RED
Flange::106X240MM
Volume::0
Supplier Information
SCAME
Products: 16209
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Poles: | 3P+E |
| Colour: | RED |
| Flange: | 106X240MM |
| Volume: | 0 |
| EAN code: | 8001636156460 |
| Quantity: | 12 |
| Dimensions: | 0X0X0 () |
| Net Weight: | 0KG |
| Description: | Carton |
| Cable outlet: | M25X1,5 |
| Gross weight: | 0 KG |
| Hour position: | 11h |
| Minimum order: | 1NR |
| Rated current: | 16A |
| Rated voltage: | 440-460V |
| Commercial series: | ADVANCE 2 Series |
| Working frequency: | 60Hz |
| Protection degree IP: | IP44 |
| Synthetical description: | INTERLOCKED SOCKET |
| Harmonized System Code (HSCode): | 85366990 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
