56117

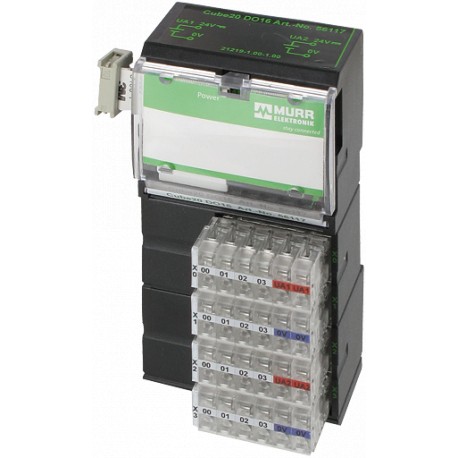

56117 MURRELEKTRONIK CUBE20 DIGITAL OUTPUT MODULE
$0.00USD
3760 in stock
Key Specifications
EAN:4048879049306
eClass:27242604
Weight::0.12 kg
Art.No.::56117
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879049306 |
| eClass | 27242604 |
| Weight: | 0.12 kg |
| Art.No.: | 56117 |
| Fieldbus | Ribbon cable connection |
| I/O ports | 16 × spring clamp plug-in terminals, max. 2.5 mm² |
| Lamp load | 40 W |
| Protection | IP20 |
| Module supply | via system connection |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Temperature range | 0...+55 °C (storage temperature -20...+85 °C) |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 12 A |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Galvanic isolation | 500 V DC between outputs and internal communication |
| Current consumption | max. 25 mA |
| Communication status | via LED |
| customs tariff number | 85176200 |
| Dimensions H × W × D | 117×56×47 mm |
| Monitoring - no voltage | no |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 2 A |
| Sensor-system/actuator supply | 8 × spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A) |
Product Description
CUBE20 DIGITAL OUTPUT MODULE16 digital outputs
