In Stock Hot Product
56112

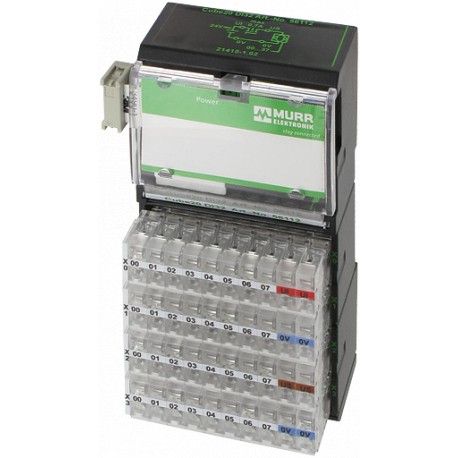

56112 MURRELEKTRONIK CUBE20 DIGITAL INPUT MODULE
$0.00USD
4875 in stock
Key Specifications
EAN:4048879049344
Type:PNP (EN 61131-2)
eClass:27242604
Weight::0.243 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879049344 |
| Type | PNP (EN 61131-2) |
| eClass | 27242604 |
| Weight: | 0.243 kg |
| Art.No.: | 56112 |
| Fieldbus | Ribbon cable connection |
| I/O ports | 32 × spring clamp plug-in terminals, max. 2.5 mm² |
| Protection | IP20 |
| Input filter | 1 ms |
| Module supply | via system connection |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Sensor supply US | 24 V DC (EN 61131-2), max. 700 mA per module |
| Temperature range | 0...+55 °C (storage temperature -20...+85 °C) |
| country of origin | DE |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module |
| Galvanic isolation | 500 V DC between inputs and internal communication |
| Current consumption | max. 25 mA |
| Communication status | via LED |
| customs tariff number | 85176200 |
| Dimensions H × W × D | 117×56×47 mm |
| Monitoring - no voltage | no |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Sensor-system/actuator supply | 8 × spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A) |
Product Description
CUBE20 DIGITAL INPUT MODULE32 digital inputs
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
