In Stock Hot Product
55762

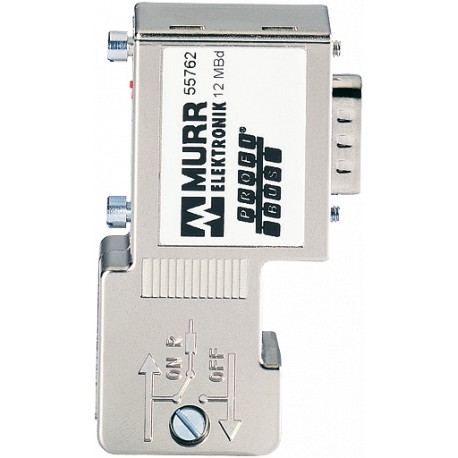

55762 MURRELEKTRONIK PROFIBUS-PLUG-MALE (SUB-D) 90°
$0.00USD
4938 in stock
Key Specifications
EAN:4048879049818
eClass:27279221
Weight::0.046 kg
Art.No.::55762
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879049818 |
| eClass | 27279221 |
| Weight: | 0.046 kg |
| Art.No.: | 55762 |
| Protection | IP20 |
| Transfer rate | max. 12 Mbit/s |
| Packaging unit | 1 |
| Operating voltage | 4.75...5.25 V DC (via the fieldbus device) |
| Temperature range | 0...+60 °C (storage temperature -25...+80 °C) |
| country of origin | DE |
| Current consumption | max. 12.5 mA |
| Terminating resistor | integrated, switchable |
| customs tariff number | 85366990 |
| Dimensions H × W × D | 64×40×17 mm |
Product Description
PROFIBUS-PLUG-MALE (SUB-D) 90°Screw terminals up to 12Mbits/s
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
