556613

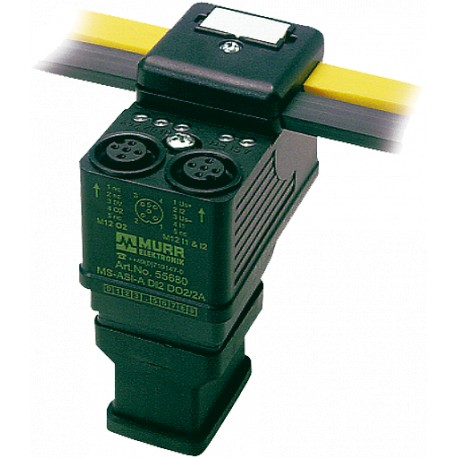

556613 MURRELEKTRONIK AS-INTERFACE VALVE PLUG PLUG
$0.00USD
3934 in stock
Key Specifications
EAN:4048879046558
Type:for 3-wire sensors or mechanical switches, PNP
eClass:27242604
Weight::0.04 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879046558 |
| Type | for 3-wire sensors or mechanical switches, PNP |
| eClass | 27242604 |
| Weight: | 0.04 kg |
| Art.No.: | 556613 |
| Addressing | 1...31 via address port |
| Connection | 1 and 2 – M12 |
| Protection | IP67 |
| Pin spacing | 11 mm |
| Total current | 2 A (only 1 output active) |
| Packaging unit | 1 |
| Supply voltage | 24 V DC external (18...30.2 V DC) EN 61131-2, connection via black AS-Interface profile cable |
| Sensor supply US | max. 200 mA from AS-Interface (short-circuit and overload protected) |
| Temperature range | -20...+70 °C |
| country of origin | DE |
| Diagnostic via LED | per module |
| Communication status | via LED |
| customs tariff number | 85176200 |
| Monitoring - no voltage | yes |
| Profile (IO/ID/ID2 code) | S-3.F.E |
| Bus voltage (AS-Interface) | 26.5...31.6 V DC |
| Switching current per output | max. 2 A (short-circuit and overload protected) |
| Total current (AS-Interface) | max. 250 mA |
Product Description
AS-INTERFACE VALVE PLUG PLUG2 digital inputs, 2 digital outputs
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
