In Stock Hot Product
55606

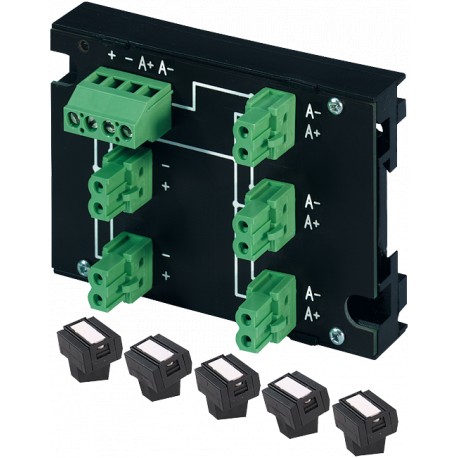

55606 MURRELEKTRONIK MASI20 INSTALLATION TECHNOLOGY
$0.00USD
3192 in stock
Key Specifications
EAN:4048879050494
eClass:27279219
Weight::0.087 kg
Art.No.::55606
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879050494 |
| eClass | 27279219 |
| Weight: | 0.087 kg |
| Art.No.: | 55606 |
| Connection | Screw terminal: single wire (0.25...4 mm²), stranded wire (0.5...2.5 mm²) |
| Protection | IP20 |
| Total current | max. 24 A |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Operating voltage | max. 36 V DC |
| Temperature range | -20...+70 °C |
| country of origin | CZ |
| customs tariff number | 85366990 |
| Current per connection | max. 8 A |
| Dimensions H × W × D | 52×67×90 mm |
| Test isolation voltage | AS-Interface/Power 200 V, (EN 60664-1) |
Product Description
MASI20 INSTALLATION TECHNOLOGYDistributor 2x AS-I and 3x extern power
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
