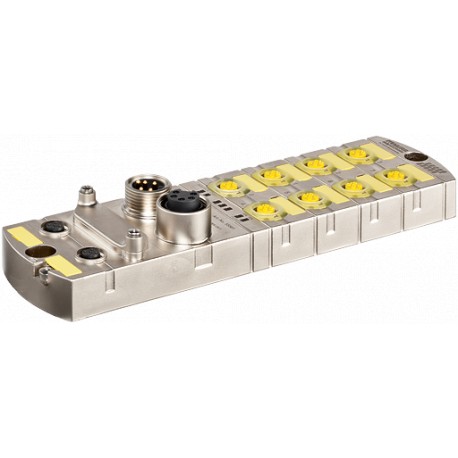

55557 MURRELEKTRONIK MVK-MPNIO F DI8/4 F DO4 7/8" IRT
$0.00USD
3367 in stock
Key Specifications
DC:98%
PL:up to e
EAN:4048879570763
MRP:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 98% |
| PL | up to e |
| EAN | 4048879570763 |
| MRP | yes |
| PFH | 1.653E-9 |
| SIL | up to 3 |
| Type | for electronical sensors or mechanical switches |
| SIL CL | up to 3 |
| eClass | 27242604 |
| Weight: | 1.008 kg |
| Art.No.: | 55557 |
| Category | up to 4 |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
| I/O ports | M12, 5-pole, A-coded |
| Addressing | DCP |
| Protection | IP67 |
| Service life | 20 years |
| Specification | V2.2, Conformance Class C (IRT) |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Actuator warning | per channel via LED and BUS |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (PIN 1+5), short-circuit and overload protected, or max. 700 mA for only one PIN |
| Temperature range | -20...+55 °C (storage temperature -40...+70 °C) |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 9 A |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Shared Device/Input | yes, for 2 controls |
| Communication status | via LED |
| Cross-link detection | Sensor/Actuator |
| Wire break detection | yes |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 44×63×225 mm |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Sensor-system/actuator supply | 7/8", 5-pole, 2 × max. 9 A |
| Switching current by safe output | max. 2 A (short-circuit and overload protected) |
Product Description
MVK-MPNIO F DI8/4 F DO4 7/8" IRTMVK ProfiNet/PROFIsafe Compact module, metal,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
