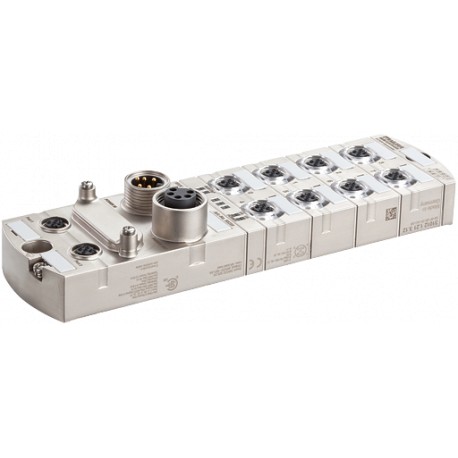

55530 MURRELEKTRONIK MVK-MPNIO DIO16 IRT 7/8" 5pin
$0.00USD
3691 in stock
Key Specifications
EAN:Four trillion forty eight billion eight hundred seventy nine million five hundred twenty seven thousand five hundred seventy six
MRP:yes
Type:for sensors 3-wire or contactor mechanical, PNP
PIN 2:Input/Output (port X0...X7)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Four trillion forty eight billion eight hundred seventy nine million five hundred twenty seven thousand five hundred seventy six |
| MRP | yes |
| Type | for sensors 3-wire or contactor mechanical, PNP |
| PIN 2 | Input/Output (port X0...X7) |
| PIN 4 | Input/Output (port X0...X7) |
| eClass | Twenty seven million two hundred forty two thousand six hundred four |
| Address | DCP |
| Weight: | 0.966 kg |
| Field Bus | Ethernet 10/100 Mbit/s; M12 Coding D |
| I/O slots | M12, 5-pole, coding A |
| Cable break | by socket |
| Charge lamp | 10 W |
| No.of item: | Fifty five thousand five hundred thirty |
| Specification | V2.3, Conformance Class C (IRT) |
| Packaging unit | One |
| Diagnosis by BUS | per module and channel |
| Mode of fixation | Screw mounting, 2 holes |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit proof and overload |
| Warning actuator | per channel via LED and BUS |
| Diagnosis by LEDS | per module and channel |
| Temperature range | -25...+60 °C (temp. storage -25...+70 °C) |
| country of origin | OF |
| FSU (Fast-Start-Up) | max. 500 ms |
| Shared Device/Input | yes, for 2 controls |
| Degree of protection | IP67 |
| Dimensions H × L × P | 42×63×225 mm |
| PROFINET Netload Class | III |
| State of communication | LED |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
| Switched current per output | max. 1.6 A (short-circuit proof and overload) |
| Number of the customs tariff | Eighty five million three hundred eighty nine thousand ninety nine |
| Power sensor-system/actuator | 7/8", 5-pole, 2 × max. 9 |
| Power supply of actuators UA | 24 V DC (EN 61131-2), max. 9 |
| Monitoring - inadequate tension | yes |
