55516

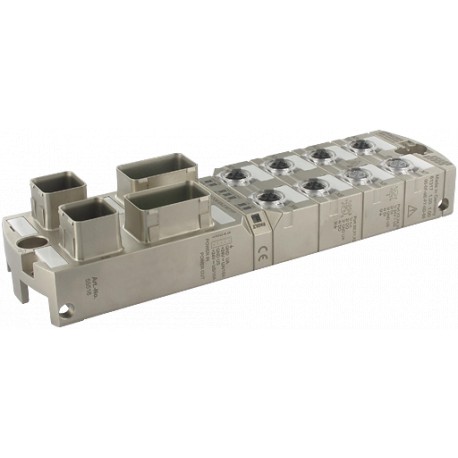

55516 MURRELEKTRONIK MVK MPNIO DI6 DO6 IOL IRT MVK ProfiNet, metal, galvanic separation
$0.00USD
3367 in stock
Key Specifications
EAN:4048879619974
MRP:yes
Type:for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
PIN 2:Input (port X3...X5); Output (port X0...X3); U-Actuator IO-Link Class B (port X6, X7)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879619974 |
| MRP | yes |
| Type | for 3-wire sensors or mechanical switches, PNP, IO-Link Devices |
| PIN 2 | Input (port X3...X5); Output (port X0...X3); U-Actuator IO-Link Class B (port X6, X7) |
| PIN 4 | Input (port X3...X5); Output (port X0...X3); IO-Link Master (port X6, X7) |
| eClass | 27242604 |
| IO-Link | 2 × Master |
| Weight: | 1.01 kg |
| Art.No.: | 55516 |
| Fieldbus | Ethernet 10/100 Mbit/s; Push Pull RJ45 Data connector |
| I/O ports | M12, 5-pole, A-coded |
| Lamp load | 10 W |
| Addressing | DCP |
| Port Class | Class B (not galvanically separated) |
| Protection | IP67 |
| Cable break | per port |
| Specification | V2.3, Conformance Class C (IRT) |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Operating modes | COM1; COM2; COM3 (automatic) |
| Actuator warning | per channel via LED and BUS |
| Sensor supply US | 24 V DC (EN 61131-2), max. 1 A (M12 female), short-circuit and overload protected |
| Temperature range | 0...+55 °C (storage temperature -20...+70 °C) |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 12 A |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| FSU (Fast-Start-Up) | max. 500 ms |
| Shared Device/Input | yes, for 2 controls |
| Transfer parameters | 32 Byte (per IO-Link port) |
| Communication status | via LED |
| customs tariff number | 85176200 |
| Dimensions H × W × D | 42.7×63×225 mm |
| PROFINET Netload Class | III |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 2 A (short-circuit and overload protected) |
| Sensor-system/actuator supply | Push Pull Power connector, max. 12 A |
Product Description
MVK MPNIO DI6 DO6 IOL IRT MVK ProfiNet, metal, galvanic separationPushPull RJ45, Energy via PushPull 5-pol.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
