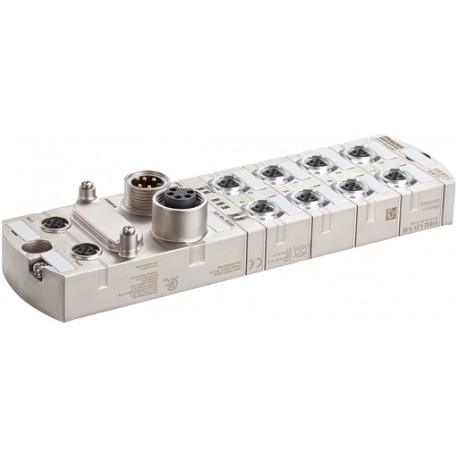

55339 MURRELEKTRONIK MVK+ MPNIO DI8 DO8 GALVANIC SEPARATION
$0.00USD
3903 in stock
Key Specifications
EAN:4048879377744
MRP:yes
Type:for 3-wire sensors or mechanical switches, PNP
PIN 2:Input (port 4...7); Output (port 0...3)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879377744 |
| MRP | yes |
| Type | for 3-wire sensors or mechanical switches, PNP |
| PIN 2 | Input (port 4...7); Output (port 0...3) |
| PIN 4 | Input (port 4...7); Output (port 0...3) |
| eClass | 27242604 |
| Weight: | 0.975 kg |
| Art.No.: | 55339 |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
| I/O ports | M12, 5-pole, A-coded |
| Lamp load | 10 W |
| Addressing | DCP |
| Protection | IP67 |
| Cable break | per port |
| Specification | V2.2, Conformance Class B |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Actuator warning | per channel via LED and BUS |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
| Temperature range | -25...+55 °C (storage temperature -25...+70 °C) |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 9 A |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| FSU (Fast-Start-Up) | max. 500 ms |
| Communication status | via LED |
| customs tariff number | 85176200 |
| Dimensions H × W × D | 39×63×225 mm |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 2 A (short-circuit and overload protected) |
| Sensor-system/actuator supply | 7/8", 5-pole, max. 9 A, protection against reverse polarization |
Product Description
MVK+ MPNIO DI8 DO8 GALVANIC SEPARATIONMVK ProfiNet Compact module, metal
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
