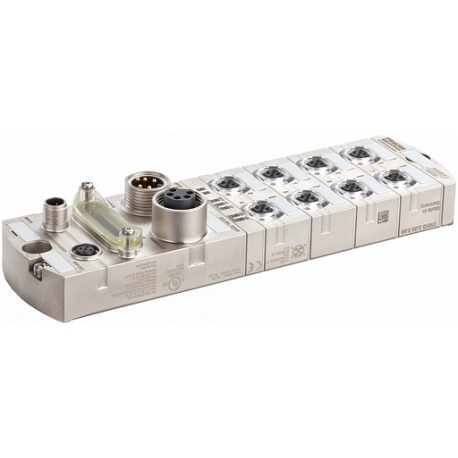

55299 MURRELEKTRONIK MVK I/O COMPACT MODULE, METAL
$0.00USD
3789 in stock
Key Specifications
EAN:4048879051521
Type:for 3-wire sensors or mechanical switches, PNP
PIN 2:Input/Output/Diagnostic
PIN 4:Input/Output
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879051521 |
| Type | for 3-wire sensors or mechanical switches, PNP |
| PIN 2 | Input/Output/Diagnostic |
| PIN 4 | Input/Output |
| eClass | 27242604 |
| Weight: | 0.822 kg |
| Art.No.: | 55299 |
| Fieldbus | DN 125 kbit/s; 250 kbit/s; 500 kbit/s; M12, A-coded |
| I/O ports | M12, 5-pole, A-coded |
| Lamp load | 10 W |
| Addressing | Rotary switch 0...63 |
| Protection | IP67 |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Actuator warning | per channel via LED and BUS |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
| Operating voltage | 24 V DC (EN 61131-2) |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 9 A |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Communication status | via LED |
| customs tariff number | 85176200 |
| Dimensions H × W × D | 42×63×225 mm |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 1.6 A (short-circuit and overload protected) |
| Sensor-system/actuator supply | 7/8", 5-pole, 2 × max. 9 A |
Product Description
MVK I/O COMPACT MODULE, METALDeviceNet,16 multifunction channels
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
