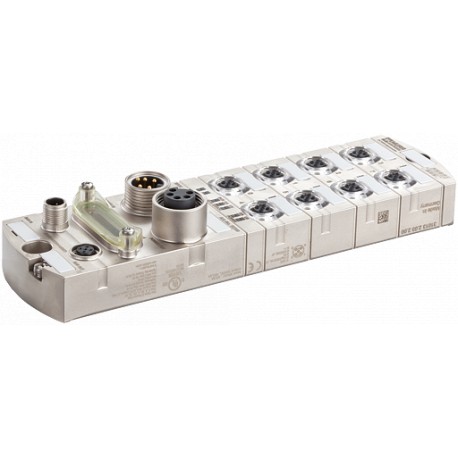

55297 MURRELEKTRONIK MVK I/O COMPACT MODULE, METAL
$0.00USD
4248 in stock
Key Specifications
EAN:4048879051545
Type:for 3-wire sensors or mechanical switches, PNP
PIN 2:Input/Diagnostic
PIN 4:Input
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879051545 |
| Type | for 3-wire sensors or mechanical switches, PNP |
| PIN 2 | Input/Diagnostic |
| PIN 4 | Input |
| eClass | 27242604 |
| Art.No.: | 55297 |
| Fieldbus | DN 125 kbit/s; 250 kbit/s; 500 kbit/s; M12, A-coded |
| I/O ports | M12, 5-pole, A-coded |
| Addressing | Rotary switch 0...63 |
| Protection | IP67 |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Actuator warning | per channel via LED and BUS |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| country of origin | DE |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Alternative product: | Product ComparisonDigital inputsDI8 + 8 × Diagnostic/DIConnection cables are in the online shop under "Connection Technology". Housing fully potted.InputSensor supply US24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protectedTypefor 3-wire sensors or mechanical switches, PNPConnectionsFieldbusDN 125 kbit/s; 250 kbit/s; 500 kbit/s; M12, A-codedSensor-system/actuator supply7/8", 5-pole, 2 × max. 9 AI/O portsM12, 5-pole, A-codedDeviceNetAddressingRotary switch 0...63General dataProtectionIP67Mounting method2-hole screw mountingDimensions H × W × D42×63×225 mmTemperature range0...+55 °C (storage temperature -20...+75 °C)ParameterizationPIN 4InputPIN 2Input/DiagnosticDiagnosticCommunication statusvia LEDDiagnostic via LEDper module and channelDiagnostic via BUSper module and channelMonitoring - under voltageyesMonitoring - no voltageyesShort-circuit and overloadyesActuator warningper channel via LED and BUSCommercial datacountry of originDEcustoms tariff number85176200EAN4048879051545eClass27242604Packaging unit1 |
| Communication status | via LED |
| customs tariff number | 85176200 |
| Dimensions H × W × D | 42×63×225 mm |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Sensor-system/actuator supply | 7/8", 5-pole, 2 × max. 9 A |
Product Description
MVK I/O COMPACT MODULE, METALDeviceNet, 16 dig. In / diag.
