55172

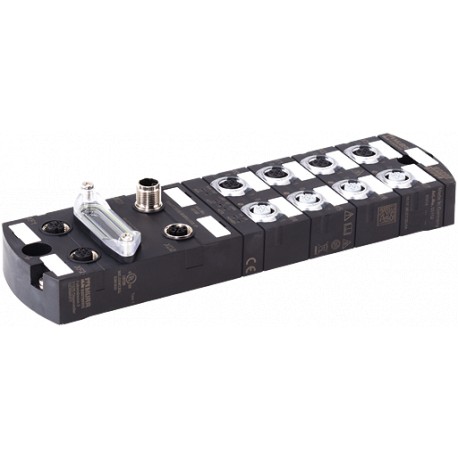

55172 MURRELEKTRONIK Impact67 PN DIO12 DIO4/IOL4 M12L 5P ProfiNet, Compact module,
$0.00USD
4828 in stock
Key Specifications
EAN:4048879778671
Type:for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
PIN 2:Input/Output (port X0...X7); U-Actuator IO-Link Class B (port X4...X7)
PIN 4:Input/Output (port X0...X7); IO-Link Master (port X4...X7)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879778671 |
| Type | for 3-wire sensors or mechanical switches, PNP, IO-Link Devices |
| PIN 2 | Input/Output (port X0...X7); U-Actuator IO-Link Class B (port X4...X7) |
| PIN 4 | Input/Output (port X0...X7); IO-Link Master (port X4...X7) |
| eClass | 27242604 |
| IO-Link | 4× Master |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
| I/O ports | M12, 5-pole, A-coded |
| Lamp load | 10 W |
| Addressing | DCP |
| Port Class | Class B (not galvanically separated) |
| Protection | IP67 |
| Cable break | per port |
| Specification | IO-Link Master V1.12 |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting, compatible with I/O modules of MVK model range |
| Operating modes | COM1; COM2; COM3 (automatic) |
| Actuator warning | per channel via LED and BUS |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female)/max. 1 A (IO-Link female), short-circuit and overload protected |
| Temperature range | -25...+55 °C (storage temperature -25...+70 °C) |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 9 A |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Dimensions H×W×D | 37×63×225 mm |
| FSU (Fast-Start-Up) | max. 500 ms |
| Shared Device/Input | yes, for 2 controls |
| Transfer parameters | 32 Byte (per IO-Link port) |
| Communication status | via LED |
| customs tariff number | 85389099 |
| PROFINET Netload Class | III |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 1.6 A (short-circuit and overload protected) |
| Sensor-system/actuator supply | M12 Power, 5-pole, L-coded, 2× max. 16 A |
Product Description
Impact67 PN DIO12 DIO4/IOL4 M12L 5P
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
