In Stock Hot Product
55142

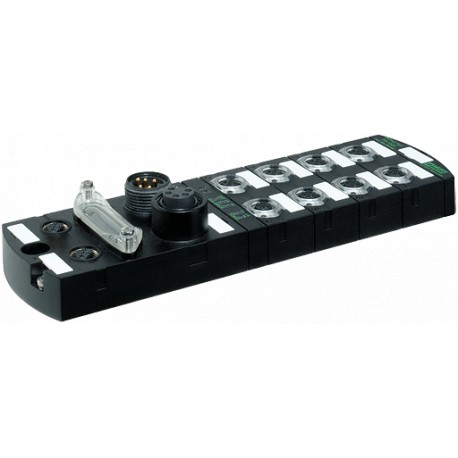

55142 MURRELEKTRONIK IMPACT67 E DIO16 4P
$0.00USD
4845 in stock
Key Specifications
EAN:4048879699723
Type:for 3-wire sensors or mechanical switches, PNP
PIN 2:Input/Output (port X0...X7)
PIN 4:Input/Output (port X0...X7)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879699723 |
| Type | for 3-wire sensors or mechanical switches, PNP |
| PIN 2 | Input/Output (port X0...X7) |
| PIN 4 | Input/Output (port X0...X7) |
| eClass | 27242604 |
| Weight: | 0.487 kg |
| Art.No.: | 55142 |
| CIP Sync | yes |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
| I/O ports | M12, 5-pole, A-coded |
| Lamp load | 10 W |
| Addressing | DHCP, BOOTP or IP address by DIP switch |
| Protection | IP67 |
| Packaging unit | 1 |
| Mounting method | 2 hole screw mounting, compatible with I/O modules of MVK model range |
| Actuator warning | per channel via LED and BUS |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
| Temperature range | -25...+55 °C (storage temperature -40...+85 °C) |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 9 A |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| QC (Quick Connect) | max. 360 ms |
| Communication status | via LED |
| Multiple connections | yes |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 39×63×225 mm |
| Composite Test Revision | CT14 |
| DLR (Device Level Ring) | yes |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 1.6 A (short-circuit and overload protected) |
| Sensor-system/actuator supply | 7/8", 4-pole, 2 × max. 9 A |
Product Description
IMPACT67 E DIO16 4PIMPACT67 EthernetIP compact module, plastic housing,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
