In Stock Hot Product
55091

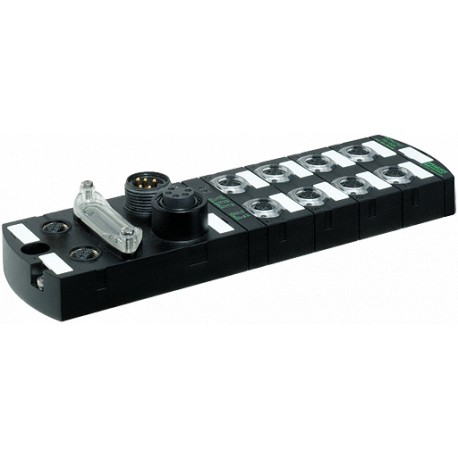

55091 MURRELEKTRONIK IMPACT67 COMPACT MODULE, PLASTIC
$0.00USD
4795 in stock
Key Specifications
EAN:4048879051910
Type:for 3-wire sensors or mechanical switches, PNP
eClass:27242604
Art.No.::55091
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879051910 |
| Type | for 3-wire sensors or mechanical switches, PNP |
| eClass | 27242604 |
| Art.No.: | 55091 |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
| I/O ports | M12, 5-pole, A-coded |
| Addressing | DCP |
| Protection | IP67 |
| Packaging unit | 1 |
| Mounting method | 2 hole screw mounting, compatible with I/O modules of MVK model range |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
| Temperature range | -25...+55 °C (storage temperature -25...+70 °C) |
| country of origin | DE |
| Diagnostic via BUS | per module |
| Diagnostic via LED | per module and channel |
| Alternative product: | Product ComparisonDigital inputsDI16Connection cables are in the online shop under "Connection Technology". Housing fully potted.InputSensor supply US24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protectedTypefor 3-wire sensors or mechanical switches, PNPConnectionsFieldbusEthernet 10/100 Mbit/s; M12, D-codedSensor-system/actuator supply7/8", 5-pole, 2 × max. 9 AI/O portsM12, 5-pole, A-codedGeneral dataProtectionIP67Mounting method2 hole screw mounting, compatible with I/O modules of MVK model rangeTemperature range-25...+55 °C (storage temperature -25...+70 °C)Dimensions H × W × D39×63×225 mmPROFINETAddressingDCPDiagnosticCommunication statusvia LEDDiagnostic via LEDper module and channelDiagnostic via BUSper moduleMonitoring - under voltageyesMonitoring - no voltageyesShort-circuit and overloadyesCommercial datacountry of originDEcustoms tariff number85389099EAN4048879051910eClass27242604Packaging unit1 |
| Communication status | via LED |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 39×63×225 mm |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Sensor-system/actuator supply | 7/8", 5-pole, 2 × max. 9 A |
Product Description
IMPACT67 COMPACT MODULE, PLASTICProfinet, 16 dig. In
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
