In Stock Hot Product
55076

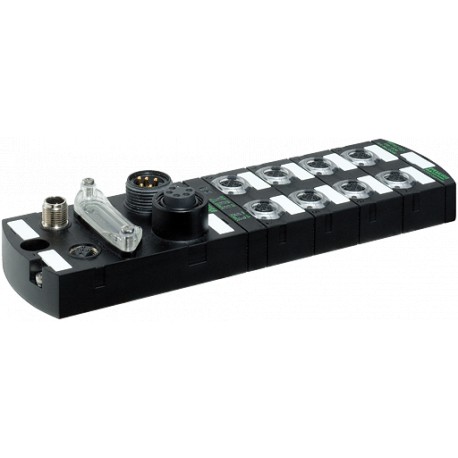

55076 MURRELEKTRONIK IMPACT67 COMPACT MODULE, PLASTIC
$0.00USD
3123 in stock
Key Specifications
EAN:4048879052023
eClass:27242604
Weight::0.42 kg
Art.No.::55076
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879052023 |
| eClass | 27242604 |
| Weight: | 0.42 kg |
| Art.No.: | 55076 |
| Fieldbus | CAN 1 Mbit/s; M12, A-coded |
| I/O ports | M12, 5-pole, A-coded |
| Addressing | Rotary switch 1...99 |
| Protection | IP67 |
| Packaging unit | 1 |
| Mounting method | 2 hole screw mounting, compatible with I/O modules of MVK model range |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
| Temperature range | -25...+70 °C (storage temperature -25...+70 °C) |
| country of origin | DE |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Communication status | via LED |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 39×63×225 mm |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 2 A (short-circuit and overload protected) |
| Sensor-system/actuator supply | 7/8", 5-pole, 2 × max. 9 A |
Product Description
IMPACT67 COMPACT MODULE, PLASTICCANopen, 8 dig. In + 8 dig. Out
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
