In Stock Hot Product
55073

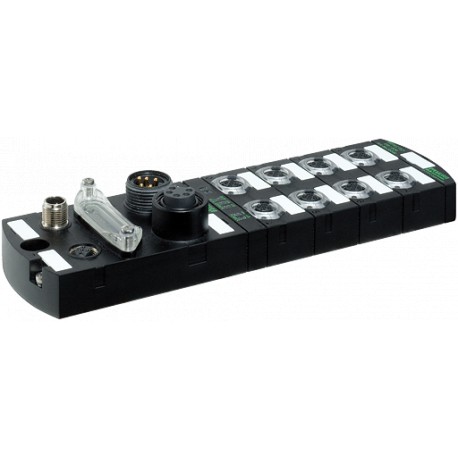

55073 MURRELEKTRONIK IMPACT67 COMPACT MODULE, PLASTIC
$0.00USD
4689 in stock
Key Specifications
EAN:4048879052054
eClass:27242604
Art.No.::55073
Fieldbus:DN 125 kbit/s; 250 kbit/s; 500 kbit/s; M12, A-coded
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879052054 |
| eClass | 27242604 |
| Art.No.: | 55073 |
| Fieldbus | DN 125 kbit/s; 250 kbit/s; 500 kbit/s; M12, A-coded |
| I/O ports | M12, 5-pole, A-coded |
| Addressing | Rotary switch 0...63 |
| Protection | IP67 |
| Packaging unit | 1 |
| Mounting method | 2 hole screw mounting, compatible with I/O modules of MVK model range |
| Temperature range | -25...+70 °C (storage temperature -25...+70 °C) |
| country of origin | DE |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Alternative product: | Product ComparisonDigital outputsDO8 - 2 AConnection cables are in the online shop under "Connection Technology". Housing fully potted.ConnectionsFieldbusDN 125 kbit/s; 250 kbit/s; 500 kbit/s; M12, A-codedSensor-system/actuator supply7/8", 5-pole, 2 × max. 9 AI/O portsM12, 5-pole, A-codedDeviceNetAddressingRotary switch 0...63General dataProtectionIP67Mounting method2 hole screw mounting, compatible with I/O modules of MVK model rangeTemperature range-25...+70 °C (storage temperature -25...+70 °C)Dimensions H × W × D39×63×225 mmOutputSwitching current per outputmax. 2 A (short-circuit and overload protected)DiagnosticCommunication statusvia LEDDiagnostic via LEDper module and channelDiagnostic via BUSper module and channelMonitoring - under voltageyesMonitoring - no voltageyesShort-circuit and overloadyesCommercial datacountry of originDEcustoms tariff number85389099EAN4048879052054eClass27242604Packaging unit1 |
| Communication status | via LED |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 39×63×225 mm |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 2 A (short-circuit and overload protected) |
| Sensor-system/actuator supply | 7/8", 5-pole, 2 × max. 9 A |
Product Description
IMPACT67 COMPACT MODULE, PLASTICDeviceNet, 8 dig. Out
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
