In Stock Hot Product
55035

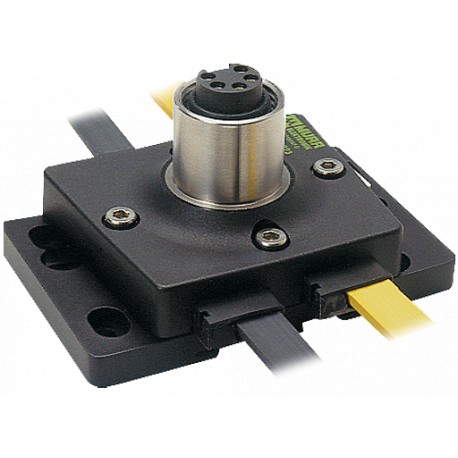

55035 MURRELEKTRONIK MASI67 INSTALLATION TECHNOLOGY
$0.00USD
3350 in stock
Key Specifications
EAN:4048879052160
PIN 1:AS-Interface + (brown)
PIN 2:AS-Interface - (blue)
PIN 3:n.c.
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879052160 |
| PIN 1 | AS-Interface + (brown) |
| PIN 2 | AS-Interface - (blue) |
| PIN 3 | n.c. |
| PIN 4 | +24 V (brown) |
| PIN 5 | 0 V (blue) |
| eClass | 27400209 |
| Weight: | 1.109 kg |
| Art.No.: | 55035 |
| Protection | IP67 |
| Total current | max. 8 A |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) or screw fixing |
| Operating voltage | max. 36 V DC |
| Temperature range | -20...+60 °C (storage temperature -40...+80 °C) |
| country of origin | DE |
| customs tariff number | 85369010 |
| Dimensions H × W × D | 90×74×52 mm |
| Test isolation voltage | AS-Interface/Power 200 V, (EN 60664-1) |
Product Description
MASI67 INSTALLATION TECHNOLOGYConverter 2x profile cable to 7/8'' female
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
