In Stock Hot Product
54505

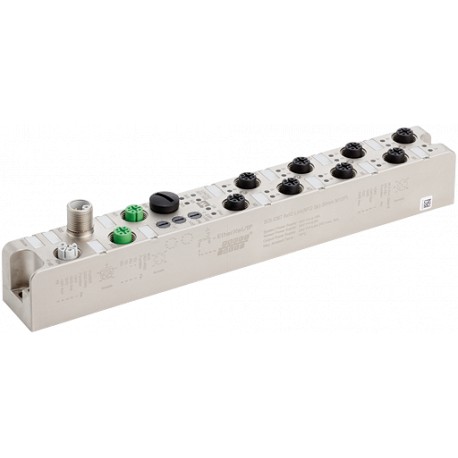

54505 MURRELEKTRONIK SOLID67 IOL8 30mm M12L 5P
$0.00USD
3705 in stock
Key Specifications
EAN:4048879727693
MRP:yes
Type:for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
PIN 2:Input (port X1...X4)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879727693 |
| MRP | yes |
| Type | for 3-wire sensors or mechanical switches, PNP, IO-Link Devices |
| PIN 2 | Input (port X1...X4) |
| PIN 4 | Input (port X1...X8); Output (port X1...X8); IO-Link Master (port X1...X8) |
| eClass | 27242604 |
| IO-Link | 8 × Master |
| Weight: | 0.48 kg |
| Art.No.: | 54505 |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
| I/O ports | M12, 5-pole, A-coded |
| Addressing | DHCP, BOOTP or IP address by rotary switch |
| Port Class | 4 × A (port X1...X4), 4 × B (port X5...X8, galvanically separated, max. 4 A per module) |
| Protection | IP67 |
| Cable break | per port |
| Specification | V2.3, Conformance Class C (IRT) |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Operating modes | COM1; COM2; COM3 (automatic) |
| Actuator warning | via LED and BUS |
| Sensor supply US | 24 V DC (EN 61131-2), max. 500 mA (M12 female), short-circuit and overload protected |
| Temperature range | -20...+70 °C |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 9 A |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Shared Device/Input | yes, for 2 controls |
| Transfer parameters | 32 Input byte and/or 32 Output byte (per IO-Link port) |
| Communication status | via LED |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 43.1×30×225 mm |
| PROFINET Netload Class | II |
| DLR (Device Level Ring) | yes |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 0.5 A (PIN 4, X1...X8), short-circuit and overload protected |
| Sensor-system/actuator supply | M12 Power, 5-pole, L-coded |
Product Description
SOLID67 IOL8 30mm M12L 5PSOLID67 Multiprotocol Profinet or EthernetIP
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
