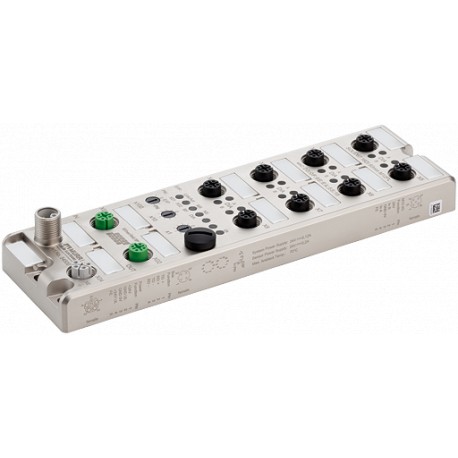

54500 MURRELEKTRONIK SOLID67 DI16 60mm M12L 5P
$0.00USD
4260 in stock
Key Specifications
EAN:4048879727655
MRP:yes
Type:for 3-wire sensors or mechanical switches, PNP
PIN 2:Input (port X1...X8)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879727655 |
| MRP | yes |
| Type | for 3-wire sensors or mechanical switches, PNP |
| PIN 2 | Input (port X1...X8) |
| PIN 4 | Input (port X1...X8) |
| eClass | 27242604 |
| Weight: | 0.507 kg |
| Art.No.: | 54500 |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
| I/O ports | M12, 5-pole, A-coded |
| Addressing | DHCP, BOOTP or IP address by rotary switch |
| Protection | IP67 |
| Cable break | per port |
| Specification | V2.3, Conformance Class C (IRT) |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Actuator warning | via LED and BUS |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
| Temperature range | -20...+70 °C |
| country of origin | DE |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| QC (Quick Connect) | max. 500 ms |
| Communication status | via LED |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 30.7×60×200 mm |
| PROFINET Netload Class | III |
| DLR (Device Level Ring) | yes |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Sensor-system/actuator supply | M12 Power, 5-pole, L-coded |
Product Description
SOLID67 DI16 60mm M12L 5PSOLID67 Multiprotocol Profinet or EthernetIP
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
