In Stock Hot Product
54202

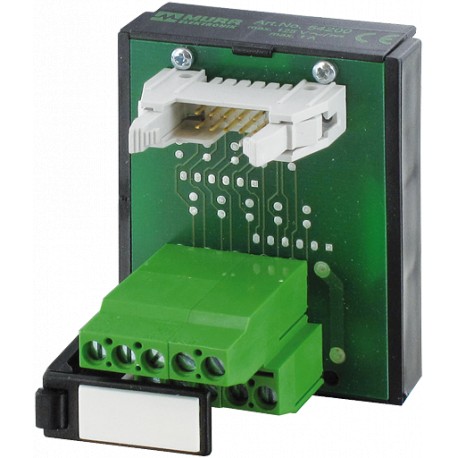

54202 MURRELEKTRONIK UFL 20 PLUG FOR SIGNAL TRANSFER
$0.00USD
4715 in stock
Key Specifications
EAN:4048879026123
eClass:27141120
Art.No.::54202
Material group:EN 60664-1 over voltage, category II
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879026123 |
| eClass | 27141120 |
| Art.No.: | 54202 |
| Material group | EN 60664-1 over voltage, category II |
| Packaging unit | 1 |
| Plug connector | for plugs with or without strain relief (DIN 41651); for plugs with strain relief, it may be necessary to remove the bottom hook |
| Mounting method | DIN-rail mountable (EN 60715) |
| Operating voltage | 125 V AC/150 V DC |
| Temperature range | -20...+70 °C |
| country of origin | CZ |
| Alternative product: | Product ComparisonRibbon cable connector20-poleVia the combined fixing mechanism, connectors with or without strain relief can be connected.Technical DataOperating voltage125 V AC/150 V DCOperating current per bitmax. 1 AMaterial groupEN 60664-1 over voltage, category IIPlug connectorfor plugs with or without strain relief (DIN 41651); for plugs with strain relief, it may be necessary to remove the bottom hookGeneral dataMounting methodDIN-rail mountable (EN 60715)Temperature range-20...+70 °CDimensions H × W × D63×75×48 mmCommercial datacountry of originCZcustoms tariff number85366990EAN4048879026123eClass27141120Packaging unit1 |
| customs tariff number | 85366990 |
| Dimensions H × W × D | 63×75×48 mm |
| Operating current per bit | max. 1 A |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
