In Stock Hot Product
54100

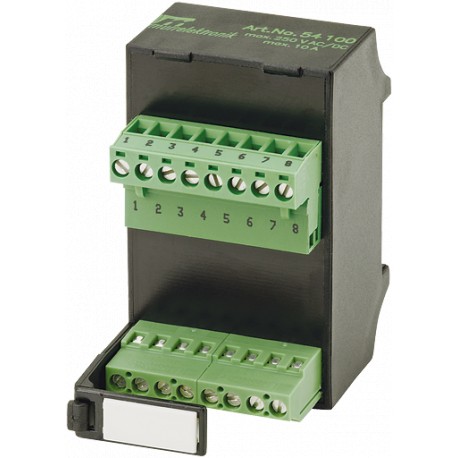

54100 MURRELEKTRONIK LUG S 8 FOR SIGNAL TRANSFER
$0.00USD
3068 in stock
Key Specifications
EAN:4048879026291
eClass:27143424
Art.No.::54100
Connection:Screw plug-in terminal: max. 4 mm², single wire
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879026291 |
| eClass | 27143424 |
| Art.No.: | 54100 |
| Connection | Screw plug-in terminal: max. 4 mm², single wire |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Operating voltage | 250 V AC |
| Temperature range | -20...+60 °C |
| country of origin | CZ |
| Alternative product: | Product Comparison8-poleScrew plug-in terminalsTechnical DataOperating voltage250 V ACOperating current per bit8 AGeneral dataConnectionScrew plug-in terminal: max. 4 mm², single wireMounting methodDIN-rail mountable (EN 60715)Dimensions H × W × D75×45×66 mmTemperature range-20...+60 °CCommercial datacountry of originCZcustoms tariff number85369010EAN4048879026291eClass27143424Packaging unit1 |
| customs tariff number | 85369010 |
| Dimensions H × W × D | 75×45×66 mm |
| Operating current per bit | 8 A |
Product Description
LUG S 8FOR SIGNAL TRANSFER250V / 8 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
