In Stock Hot Product
54061

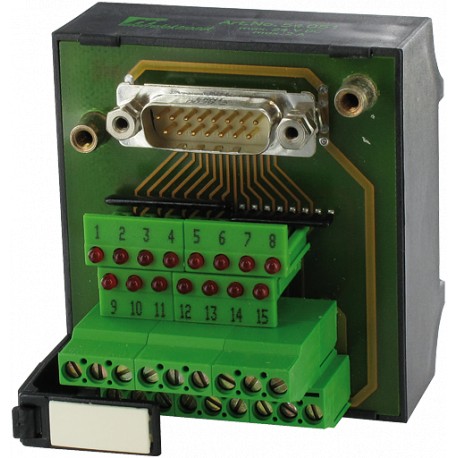

54061 MURRELEKTRONIK UG SUB 15 BL FOR SIGNAL TRANSFER (LED)
$0.00USD
4489 in stock
Key Specifications
EAN:4048879026383
eClass:27143424
Art.No.::54061
LED display:LED (red) Ø 3 mm per pole, acc. to potential -
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879026383 |
| eClass | 27143424 |
| Art.No.: | 54061 |
| LED display | LED (red) Ø 3 mm per pole, acc. to potential - |
| Material group | EN 60664-1 over voltage, category II |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Locking of ports | Standard UNC 4-40 screw thread bolt (EN 60807) |
| Operating voltage | 24 V DC ±15% |
| Temperature range | -20...+70 °C |
| country of origin | CZ |
| Alternative product: | Product ComparisonFemale connector + LED15-poleScrew terminalswith LEDTechnical DataOperating voltage24 V DC ±15%Operating current per bitmax. 2 ALED displayLED (red) Ø 3 mm per pole, acc. to potential -Material groupEN 60664-1 over voltage, category IILocking of portsStandard UNC 4-40 screw thread bolt (EN 60807)General dataMounting methodDIN-rail mountable (EN 60715)Temperature range-20...+70 °CDimensions H × W × D75×70×66 mmCommercial datacountry of originCZcustoms tariff number85366990EAN4048879026383eClass27143424Packaging unit1 |
| customs tariff number | 85366990 |
| Dimensions H × W × D | 75×70×66 mm |
| Operating current per bit | max. 2 A |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
