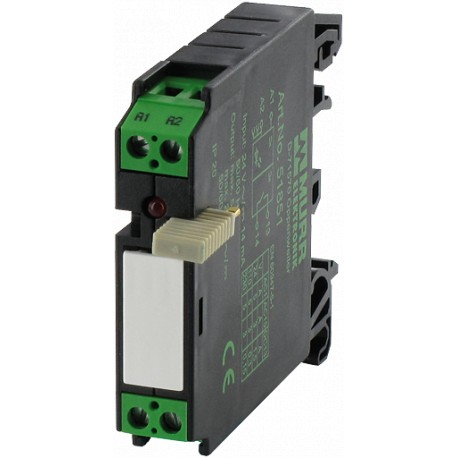

51850 MURRELEKTRONIK RMM 11/48VDC WITH GROUND BRIDGE OUTPUT RELAY
$0.00USD
3538 in stock
Key Specifications
EAN:4048879027359
AC-1:6 A (24/110/230 V AC)
AC-15:4 A (24/110/230 V AC)
DC-13:2 A (24 V DC); 0.25 A (110 V DC); 0.1 A (230 V DC)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879027359 |
| AC-1 | 6 A (24/110/230 V AC) |
| AC-15 | 4 A (24/110/230 V AC) |
| DC-13 | 2 A (24 V DC); 0.25 A (110 V DC); 0.1 A (230 V DC) |
| eClass | 27371001 |
| Weight: | 0.032 kg |
| Art.No.: | 51850 |
| LED display | LED (red) |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable TH35 or G32 (EN 60715) |
| Contact material | Ag Ni 0.15 hv |
| Min. load current | 100 mA |
| Switching voltage | max. 250 V AC/300 V DC |
| Temperature range | -20...+50 °C |
| country of origin | CZ |
| Mech./ elect. life | 20 000 000 switching cycles/load dependent |
| Switching frequency | max. 10 Hz |
| Plug link (supplied) | Art-No. 90960 |
| customs tariff number | 85364900 |
| Dimensions H × W × D | 56×12×65 mm |
| Test isolation voltage | 4 kV |
| Connection voltage - current | 48 V AC/DC (40...53 V AC/DC) - 10 mA |
| Switching current per output | max. 5 A |
| Power rating (voltage dependent) | max. 1 250 VA/240 W |
| Energize/release/contact bounce time | 10/15/1.5 ms |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
