516090

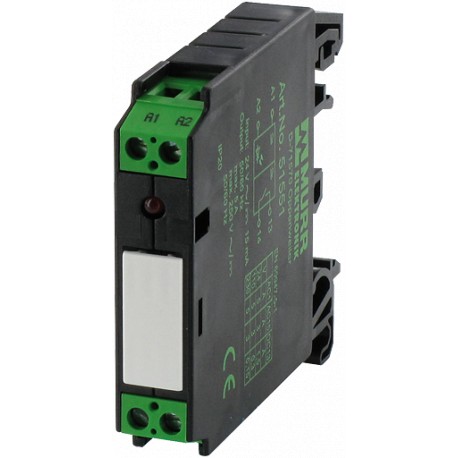

516090 MURRELEKTRONIK RMM 11/24 DC OUTPUT RELAY
$0.00USD
4176 in stock
Key Specifications
EAN:4048879024822
AC-1:5 A (24/110/230 V AC)
AC-15:3 A (24/110/230 V AC)
DC-13:1.5 A (24 V DC); 0.3 A (110 V DC); 0.15 A (230 V DC)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879024822 |
| AC-1 | 5 A (24/110/230 V AC) |
| AC-15 | 3 A (24/110/230 V AC) |
| DC-13 | 1.5 A (24 V DC); 0.3 A (110 V DC); 0.15 A (230 V DC) |
| eClass | 27371601 |
| Weight: | 0.03 kg |
| Art.No.: | 516090 |
| LED display | LED (red) |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable TH35 or G32 (EN 60715) |
| Contact material | Ag Ni |
| Min. load current | 100 mA |
| Switching voltage | max. 250 V AC/DC |
| Temperature range | -25...+60 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Mech./ elect. life | 20 000 000 switching cycles/load dependent |
| Switching frequency | 50...60 Hz |
| customs tariff number | 85364900 |
| Test isolation voltage | 4 kV |
| Connection voltage - current | 24 V DC (19.2...30 V DC) - 15 mA |
| Switching current per output | max. 5 A |
| Power rating (voltage dependent) | max. 1 250 VA/240 W |
| Energize/release/contact bounce time | 20/15/2 ms |
Product Description
RMM 11/24 DC OUTPUT RELAYIN: 24 VDC - OUT: 250 VAC/DC / 5 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
