51413

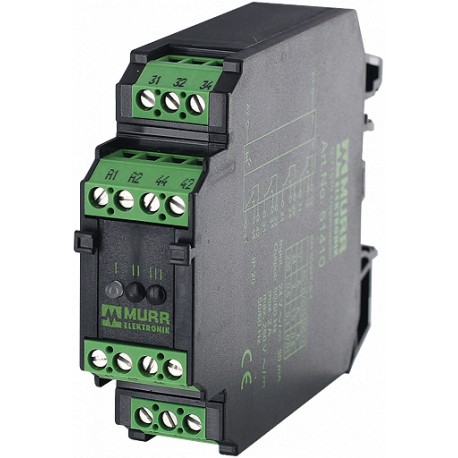

51413 MURRELEKTRONIK RM 14/230V AC OUTPUT RELAY
$0.00USD
3505 in stock
Key Specifications
EAN:4048879027625
AC-12:2 A (24 V AC); 0.5 A (230 V AC)
AC-15:1 A (24 V AC); 0.1 A (230 V AC)
DC-13:0.8 A (24 V DC); 0.01 A (230 V DC)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879027625 |
| AC-12 | 2 A (24 V AC); 0.5 A (230 V AC) |
| AC-15 | 1 A (24 V AC); 0.1 A (230 V AC) |
| DC-13 | 0.8 A (24 V DC); 0.01 A (230 V DC) |
| eClass | 27371001 |
| Art.No.: | 51413 |
| LED display | LED (red) |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable TH35 or G32 (EN 60715) |
| Contact material | Ag Au |
| Min. load current | 0.1 mA |
| Switching voltage | max. 250 V AC/DC |
| Temperature range | -20...+50 °C |
| country of origin | CZ |
| Mech./ elect. life | 50 000 000 switching cycles/load dependent |
| Switching frequency | max. 0.1 Hz (with load) |
| Alternative product: | Product Comparison1 relay; 4 NO/NC contacts2 A230 V ACScrew terminalsInputConnection voltage - current230 V AC (195...250 V AC) - 10 mALED displayLED (red)Utilization categoryAC-122 A (24 V AC); 0.5 A (230 V AC)AC-151 A (24 V AC); 0.1 A (230 V AC)DC-130.8 A (24 V DC); 0.01 A (230 V DC)General dataMech./ elect. life50 000 000 switching cycles/load dependentTest isolation voltage1.5 kVMounting methodDIN-rail mountable TH35 or G32 (EN 60715)Temperature range-20...+50 °CDimensions H × W × D75×22.5×102 mmOutputSwitching voltagemax. 250 V AC/DCSwitching current per outputmax. 2 AMin. load current0.1 mAPower rating (voltage dependent)max. 125 VA/60 WSwitching frequencymax. 0.1 Hz (with load)Contact materialAg AuEnergize/release/contact bounce time10/20/2 msCommercial datacountry of originCZcustoms tariff number85364900EAN4048879027625eClass27371001Packaging unit1 |
| customs tariff number | 85364900 |
| Dimensions H × W × D | 75×22.5×102 mm |
| Test isolation voltage | 1.5 kV |
| Connection voltage - current | 230 V AC (195...250 V AC) - 10 mA |
| Switching current per output | max. 2 A |
| Power rating (voltage dependent) | max. 125 VA/60 W |
| Energize/release/contact bounce time | 10/20/2 ms |
Product Description
RM 14/230V AC OUTPUT RELAYIN: 230 VAC/DC - OUT: 250 VAC/DC / 2 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
