In Stock Hot Product
51403

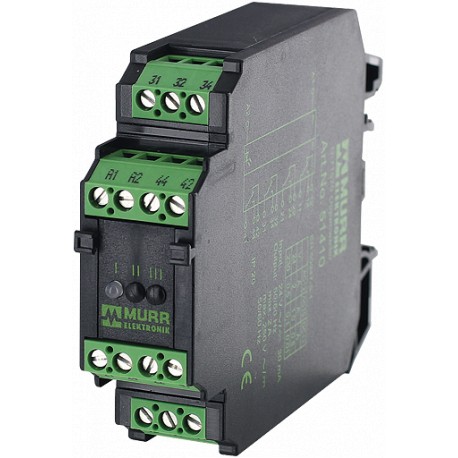

51403 MURRELEKTRONIK RM-31/24V DC KL.BZ.N.IN OUTPUT RELAY IN: 24 VDC OUT: 250 VAC/DC / 5 A
$0.00USD
4099 in stock
Key Specifications
EAN:Four trillion forty eight billion eight hundred seventy nine million twenty seven thousand six hundred fifty six
AC-1:8 A (24/110/230 V AC)
AC-15:3 A (24/110/230 V AC)
Code::Fifty one thousand four hundred three
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Four trillion forty eight billion eight hundred seventy nine million twenty seven thousand six hundred fifty six |
| AC-1 | 8 A (24/110/230 V AC) |
| AC-15 | 3 A (24/110/230 V AC) |
| Code: | Fifty one thousand four hundred three |
| DC-13 | 1.5 A (24 V DC); 0.3 A (110 V DC); 0.15 A (230 V DC) |
| eClass | Twenty seven million three hundred seventy one thousand one |
| LED indicator | LED (red) |
| Type of fixing | pluggable DIN rail TH35 or G32 (EN 60715) |
| Contact material | Ag Sn O2 |
| Temperature Range | -20...+50 °C |
| country of origin | CZ |
| Current for output | max. 8 |
| Voltage switchable | max. 250 V AC/DC |
| Switching frequency | max. 0.1 Hz (with load) |
| Alternative product: | Product comparison3 relays; 1 changeover contact each5 To24 V DCScrew terminalsInputCurrent - voltage connection24 V DC (19.2...30 V DC - 16 mALED indicatorLED (red)Category of useAC-18 A (24/110/230 V AC)AC-153 A (24/110/230 V AC)DC-131.5 A (24 V DC); 0.3 A (110 V DC); 0.15 A (230 V DC)General dataDuration mecc./ electr.20 000 000 cycles depending on the loadTest isolation voltage4 kVType of fixingpluggable DIN rail TH35 or G32 (EN 60715)Temperature Range-20...+50 °CDimensions H × W × D75×22.5×102 mmOutputVoltage switchablemax. 250 V AC/DCCurrent for outputmax. 8Current minimum load100 mASwitching (depending on voltage)max. 1 250 VA/240 WSwitching frequencymax. 0.1 Hz (with load)Contact materialAg Sn O2Reaction time/drop/bounce10/10/2 mscommercial dataEANFour trillion forty eight billion eight hundred seventy nine million twenty seven thousand six hundred fifty sixeClassTwenty seven million three hundred seventy one thousand oneMinimum lot per orderOneCustoms tariff numberEighty five million three hundred sixty four thousand nine hundredcountry of originCZ |
| Current minimum load | 100 mA |
| Customs tariff number | Eighty five million three hundred sixty four thousand nine hundred |
| Minimum lot per order | One |
| Dimensions H × W × D | 75×22.5×102 mm |
| Test isolation voltage | 4 kV |
| Duration mecc./ electr. | 20 000 000 cycles depending on the load |
| Reaction time/drop/bounce | 10/10/2 ms |
| Current - voltage connection | 24 V DC (19.2...30 V DC - 16 mA |
| Switching (depending on voltage) | max. 1 250 VA/240 W |
