51138

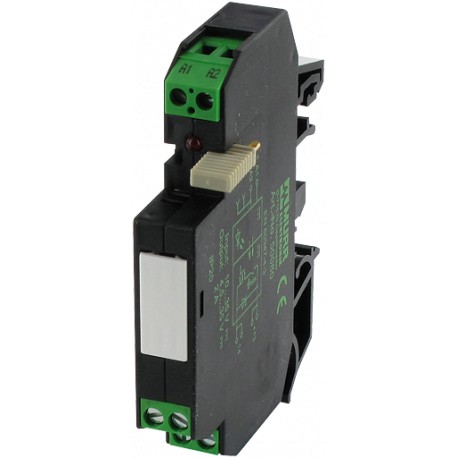

51138 MURRELEKTRONIK RMMDUE 11/230 V AC INPUT RELAY
$0.00USD
4083 in stock
Key Specifications
EAN:4048879027748
AC-1:5 A (24/110/230 V AC)
AC-15:4 A (24/110/230 V AC)
DC-13:2 A (24 V DC); 0.25 A (110 V DC); 0.1 A (230 V DC)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879027748 |
| AC-1 | 5 A (24/110/230 V AC) |
| AC-15 | 4 A (24/110/230 V AC) |
| DC-13 | 2 A (24 V DC); 0.25 A (110 V DC); 0.1 A (230 V DC) |
| eClass | 27371001 |
| Art.No.: | 51138 |
| LED display | LED (yellow) |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable TH35 or G32 (EN 60715) |
| Contact material | Ag Ni 0.15 hv; Ag hv |
| Min. load current | 1 mA |
| Switching voltage | max. 250 V AC/DC |
| Temperature range | -20...+60 °C |
| country of origin | CZ |
| Mech./ elect. life | 100 000 000 switching cycles/load dependent |
| Switching frequency | max. 15 Hz |
| Alternative product: | Product Comparison1 relay; 1 NO/NC contact5 A230 V ACwith minus plug linkInputConnection voltage - current230 V AC/DC (195...253 V AC/DC) - 4.5 mALED displayLED (yellow)Utilization categoryAC-15 A (24/110/230 V AC)AC-154 A (24/110/230 V AC)DC-132 A (24 V DC); 0.25 A (110 V DC); 0.1 A (230 V DC)General dataMech./ elect. life100 000 000 switching cycles/load dependentTest isolation voltage4 kVMounting methodDIN-rail mountable TH35 or G32 (EN 60715)Temperature range-20...+60 °CDimensions H × W × D82×12×68 mmOutputSwitching voltagemax. 250 V AC/DCSwitching current per outputmax. 5 AMin. load current1 mAPower rating (voltage dependent)max. 1 500 VA/180 WSwitching frequencymax. 15 HzContact materialAg Ni 0.15 hv; Ag hvEnergize/release/contact bounce time10/10/1 msCommercial datacountry of originCZcustoms tariff number85364900EAN4048879027748eClass27371001Packaging unit1 |
| customs tariff number | 85364900 |
| Dimensions H × W × D | 82×12×68 mm |
| Test isolation voltage | 4 kV |
| Connection voltage - current | 230 V AC/DC (195...253 V AC/DC) - 4.5 mA |
| Switching current per output | max. 5 A |
| Power rating (voltage dependent) | max. 1 500 VA/180 W |
| Energize/release/contact bounce time | 10/10/1 ms |
Product Description
RMMDUE 11/230 V AC INPUT RELAYIN: 230 VAC/DC - OUT: 250 VAC/DC / 5 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
