4NC5330-2CE21

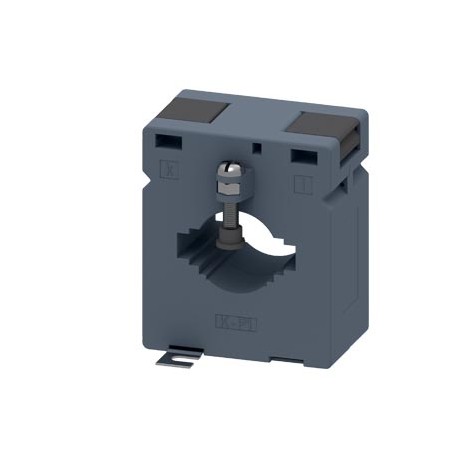

4NC5330-2CE21 SIEMENS current transformer 750/5 A, 5 VA CL 1.0
$0.00USD
4979 in stock
Key Specifications
:
EAN:4001869559421
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869559421 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 77 mm |
| width | 82.5 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 98 mm |
| Group Code | P360 |
| net weight | 598 g |
| ● maximum | 55 °C |
| ● minimum | -30 °C |
| Confirmation | |
| Date5/4/2022 | |
| Metal Factor | None |
| Product Group | 5891 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85043129 |
| Product family | 4NC Current Transformers for Measuring Purposes |
| Net Weight (kg) | 0,539 Kg |
| Model (EF000010) | Attachable current transformer |
| fastening method | screw fixing |
| Country of origin | India |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 90,00 x 125,00 x 80,00 |
| Product Description | current transformer 750/5 A, 5 VA CL 1.0 |
| product designation | Current transformer |
| protection class IP | IP20 |
| Calibrated (EF003706) | false |
| design of the product | Bushing-type current transformers |
| height of the opening | 21 mm |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Snap mounting (EF007462) | - |
| Width opening (EF004565) | 51.0 |
| Accuracy class (EF001532) | class 1 |
| Height opening (EF004778) | 21.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Opening diameter (EF005153) | 36.0 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| With copper rail (EF007380) | - |
| diameter / of inlet opening | 36 mm |
| Package size unit of measure | MM |
| Secondary connection (EF007469) | Screw connection |
| Primary rated current (EF007405) | 750 |
| With shock protection (EF008186) | true |
| Secondary rated current (EF007471) | 5 |
| product feature / touch protection | Yes |
| Number of primary inputs (EF006947) | 1 |
| ● current / at input / rated value | 750 A |
| Article Number (Market Facing Number) | 4NC5330-2CE21 |
| ● current / at output / rated value | 5 A |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| operating apparent power / rated value | 5 VA |
| Over current limiting factor (EF007511) | FS 10 |
| reference code / according to EN 61346-2 | T |
| Secondary rated apparent power (EF007470) | 5.0 |
| type of electrical connection / at output | screw-type terminals |
| ● ratio of input current/output current | 750/5 |
| designation of overcurrent limiting factor | FS 5 |
| accuracy class / of the current transformer | class 1 |
| Region Specific PriceGroup / Headquarter Price Group | 12R / 1CL |
| outer diameter / of the push-through conductor / maximum | 36 mm |
| width / of the push-through bus bar / at 1 bus bar / maximum | 51 mm |
| width / of the push-through bus bar / in case of 2 bus bars / maximum | 41 mm |
| Compliance with the substance restrictions according to RoHS directive | Since: 10.05.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
750/5A, 5VA KL1.0 current transformer
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
