4NC5328-2CE20

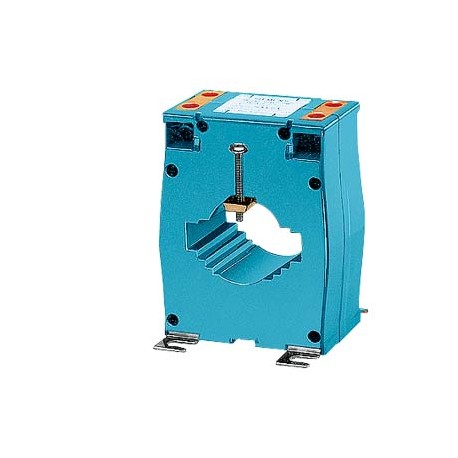

4NC5328-2CE20 SIEMENS Window-type current transformer, Class 1 750 A/5 A, 5 VA
$0.00USD
3835 in stock
Key Specifications
:Value
EAN:4011209071780
UPC:Not available
Depth:80 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209071780 |
| UPC | Not available |
| Depth | 80 mm |
| Notes | Product is no longer availableSucessor:4NC5330-2CE21. Please note: different dimensionsIf you need assistance please contact our local Siemens office |
| Width | 82.5 mm |
| Height | 98 mm |
| Group Code | P360 |
| Price Group | 12R |
| ● maximum | 55 °C |
| ● minimum | -10 °C |
| Metal Factor | L-P----- |
| Mounting type | screw fixing |
| Product Group | 5891 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 0 Piece |
| Commodity Code | 85043129 |
| Product family | Not available |
| Net Weight (kg) | 0,388 Kg |
| Model (EF000010) | Other |
| Country of origin | Brazil |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | End of product lifecycle since: 31.12.2019 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 97,00 x 113,00 x 62,00 |
| Product Description | Window-type current transformer, Class 1 750 A/5 A, 5 VA |
| Product designation | Window-type current transformers |
| Protection class IP | IP20 |
| Calibrated (EF003706) | - |
| Product Lifecycle (PLM) | PM500:Discontinued Product or end of PLM & Support |
| Snap mounting (EF007462) | - |
| Width opening (EF004565) | - |
| Accuracy class (EF001532) | class 1 |
| Height opening (EF004778) | - |
| Export Control Regulations | ECCN : N / AL : N |
| Opening diameter (EF005153) | 36.0 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| With copper rail (EF007380) | - |
| Package size unit of measure | MM |
| Product Dimensions (W x L x H) | Not available |
| Secondary connection (EF007469) | Screw connection |
| Primary rated current (EF007405) | 750 |
| With shock protection (EF008186) | true |
| Product feature / Touch protection | Yes |
| Secondary rated current (EF007471) | 5 |
| Number of primary inputs (EF006947) | 1 |
| ● Current / at input / rated value | 750 A |
| Article Number (Market Facing Number) | 4NC5328-2CE20 |
| ● Current / at output / rated value | 5 A |
| Ambient temperature / during operation | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Operating apparent output / rated value | 5 V·A |
| Over current limiting factor (EF007511) | FS 10 |
| Secondary rated apparent power (EF007470) | 5.0 |
| Type of electrical connection / at output | screw-type terminals |
| ● Ratio of input current/output current | 750/5 A |
| Accuracy class / of the current transformer | class 1 |
| ● Reference code / acc. to DIN EN 81346-2 | TA |
| ● reference code / acc. to DIN EN 61346-2 | T |
| Outer diameter / of the push-through conductor / maximum | 36 mm |
| ● Width / of the push-through bus bar / at 1 bus bar / maximum | 50 mm |
| Compliance with the substance restrictions according to RoHS directive | Given |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| ● Width / of the push-through bus bar / in case of 2 bus bars / maximum | 40 mm |
| Reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750 | T |
