4AC3218-0

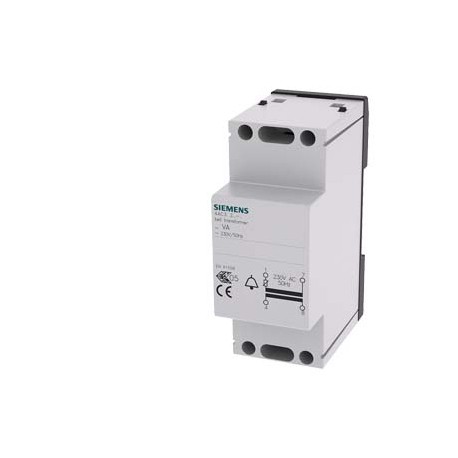

4AC3218-0 SIEMENS Bell transformer, 18VA Primary 230-240 V AC, 50 Hz, secondary 8 V, 12 V AC With PTC fuse, ..
$0.00USD
3994 in stock
Key Specifications
:
EAN:4001869438306
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869438306 |
| UPC | Not available |
| ETIM | 5 |
| width | 36 mm |
| eClass | 6 |
| height | 64 mm |
| length | 90 mm |
| Group Code | P310 |
| ● maximum | 2 A |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/14/2022 | |
| Product Group | 5528 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| input voltage | 230 V |
| Commodity Code | 85044082 |
| Product family | SENTRON 4AC3 Bell Transformers |
| output current | |
| output voltage | |
| Net Weight (kg) | 0,355 Kg |
| Width (EF000008) | 36.0 |
| Country of origin | Germany |
| Height (EF000040) | 64.0 |
| Length (EF001438) | 90.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● flush mounting | No |
| Packaging Dimension | 35,00 x 90,00 x 70,00 |
| Product Description | Bell transformer, 18VA Primary 230-240 V AC, 50 Hz, secondary 8 V, 12 V AC With PTC fuse, 2MW++ |
| product designation | Bell transformer |
| ● _1 / rated value | 4 V |
| ● _2 / rated value | 8 V |
| ● _3 / rated value | 12 V |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| design of the transformer | Standard bell transformer |
| Export Control Regulations | AL : N / ECCN : N |
| Max. power loss (EF004996) | 8.4 |
| Modular version (EF001126) | true |
| Primary voltage (EF003775) | 230 |
| product component / switch | No |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| suitability for integration | |
| Max. output power (EF001507) | 18.0 |
| Package size unit of measure | MM |
| With on/off switch (EF000488) | false |
| number of modular width units | 2 |
| Max. output current (EF001315) | 2000.0 |
| Secondary voltage 1 (EF003776) | 4 |
| Secondary voltage 2 (EF003777) | 8 |
| Secondary voltage 3 (EF003778) | 12 |
| Type of transformer (EF000279) | Standard bell ringing transformer |
| Secondary amperage 1 (EF003779) | 2 |
| Secondary amperage 2 (EF003780) | 2 |
| Secondary amperage 3 (EF003781) | 1.5 |
| supplied active power / maximum | 18 W |
| ● surface-mounted installation | No |
| Temperature protection (EF003782) | true |
| Short-circuit protected (EF003696) | true |
| Article Number (Market Facing Number) | 4AC3218-0 |
| product function / thermal protection | Yes |
| Suitable for flush-mounting (EF006643) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Suitable for surface mounting (EF006642) | false |
| fastening method / side-by-side mounting | Yes |
| property of the output / short-circuit proof | Yes |
| Width in number of modular spacings (EF002950) | 2 |
| Region Specific PriceGroup / Headquarter Price Group | 12H / 1BK |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 8 W |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityConfirmationMiscellaneous | General Product Approval |
Product Description
TRANSFORMER FOR DOORBELL Usec 8/12 V-AC,Isec 2.0/1.5. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
