4927073

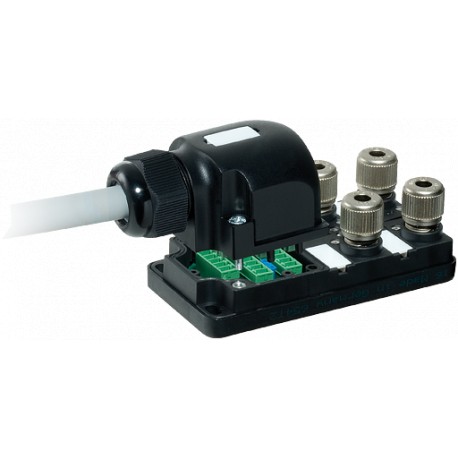

4927073 MURRELEKTRONIK MVP12, 4XM12, MOSA, pluggable cable 10.0m PUR-JB 8x0,34 + 5x0,75
$0.00USD
3269 in stock
Key Specifications
:LED (green): Power / LED (yellow): (S1/S2)
EAN:4048879057622
PIN 1:(+)
PIN 2:(NC)/(S2)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| LED (green): Power / LED (yellow): (S1/S2) | |
| EAN | 4048879057622 |
| PIN 1 | (+) |
| PIN 2 | (NC)/(S2) |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| eClass | 27279219 |
| Housing | Plastic, flame retardant |
| Outer Ø | 9.2 mm ±5% |
| Protection | IP67 inserted and tightened (EN 60529) |
| Cable number | 374 |
| Jacket Color | gray |
| Total current | max. 2× 8 A |
| Color (jacket) | gray |
| Packaging unit | 1 |
| Wire isolation | PVC |
| Signal per port | 2 |
| Locking of ports | Cap nut |
| Material (jacket) | PUR/PVC |
| Operating voltage | 24 V DC |
| Temperature range | -20...+80 °C |
| country of origin | DE |
| C-track properties | 1.5 Mio. |
| Dimensions H×W×D | 43×50.2×122 mm |
| Bend radius (fixed) | 10× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| No./diameter of wires | 8× 0.34 + 5× 0.75 mm² |
| customs tariff number | 85369010 |
| Connection cross section | 0.25...0.5 mm² |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -30...+80 °C |
| Operating current per contact | max. 4 A |
Product Description
MVP12, 4XM12, MOSA, PLUGGABLE CABLE10.0m PUR-JB 8x0,34+5x0,75
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
