In Stock Hot Product
446142

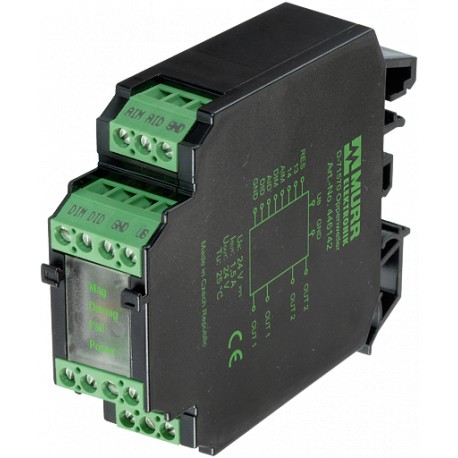

446142 MURRELEKTRONIK DEMAGNETIZER WITH ALARM CONTACT
$0.00USD
4782 in stock
Key Specifications
:potential free 30 V AC/DC, 100 mA
EAN:4048879308496
eClass:27210990
Art.No.::446142
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| potential free 30 V AC/DC, 100 mA | |
| EAN | 4048879308496 |
| eClass | 27210990 |
| Art.No.: | 446142 |
| Connection | Screw terminals |
| Protection | IP20 |
| LED display | LED (green) |
| PWM frequency | approx. 800 Hz |
| Input resistor | approx. 10 kΩ |
| Output current | max. 1.5 A (short-circuit protected) |
| Output voltage | 24 V DC |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Operating current | approx. 40 mA |
| Operating voltage | 24 V DC (18...30 V DC) |
| Temperature range | -25...+50 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Alternative product: | Product ComparisonINPUT: 24 V DCOUTPUT: 24 V DCmax. 1.5 A (short-circuit protected)Screw terminalspotential free 30 V AC/DC, 100 mAIf the previous model 446140 is replaced by 446142, the Reset-Input must be conneted to +24 V DCInputInput resistorapprox. 10 kΩMagnetization (digital)safe OFF: max. 1V; safe ON: min. 5V (LED green)Magnetization (analog)0.8...8.8 V (0...100%)Demagnetization (digital)safe OFF: max. 1V; safe ON: min. 5V (LED yellow)Demagnetization (analog)0...10 V (44...55%)Technical DataOperating voltage24 V DC (18...30 V DC)Operating currentapprox. 40 mALED displayLED (green)Invers-polarity protectionyespotential free 30 V AC/DC, 100 mAGeneral dataProtectionIP20Mounting methodDIN-rail mountable (EN 60715)ConnectionScrew terminalsTemperature range-25...+50 °C (storage temperature -40...+80 °C)Dimensions H × W × D75×22.5×102 mmOutputOutput voltage24 V DCOutput currentmax. 1.5 A (short-circuit protected)PWM frequencyapprox. 800 HzCommercial datacountry of originCZcustoms tariff number85437090EAN4048879308496eClass27210990Packaging unit1 |
| customs tariff number | 85437090 |
| Dimensions H × W × D | 75×22.5×102 mm |
| Magnetization (analog) | 0.8...8.8 V (0...100%) |
| Magnetization (digital) | safe OFF: max. 1V; safe ON: min. 5V (LED green) |
| Demagnetization (analog) | 0...10 V (44...55%) |
| Demagnetization (digital) | safe OFF: max. 1V; safe ON: min. 5V (LED yellow) |
| Invers-polarity protection | yes |
Product Description
DEMAGNETIZER WITH ALARM CONTACTInput: 24VDC Output: 24VDC / 1,5A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
