In Stock Hot Product
405.1679

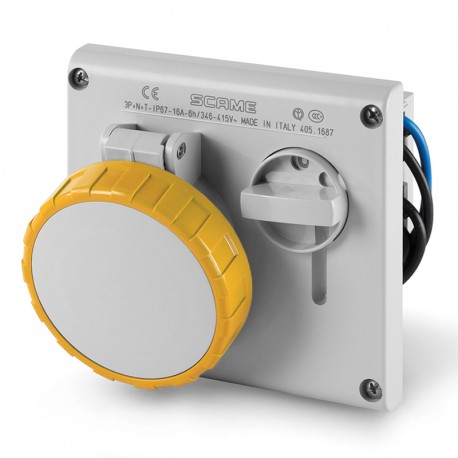

405.1679 SCAME INTERLOCKED SOCKET 3P+N+E IP67 16A 4h
$0.00USD
3435 in stock
Key Specifications
Poles::3P+N+E
Colour::YELLOW
Flange::136X125MM
Volume::18427.5 CCM
Supplier Information
SCAME
Products: 16209
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Poles: | 3P+N+E |
| Colour: | YELLOW |
| Flange: | 136X125MM |
| Volume: | 18427.5 CCM |
| EAN code: | 8001636048932 |
| Quantity: | 6 |
| Dimensions: | 315X390X150 (MM) |
| Net Weight: | 0.503KG |
| Description: | Carton |
| Gross weight: | 3.45 KG |
| Hour position: | 4h |
| Minimum order: | 1NR |
| Rated current: | 16A |
| Rated voltage: | 100-130V |
| Commercial series: | OMNIA Series |
| Working frequency: | 50Hz |
| Protection degree IP: | IP66/IP67 |
| Synthetical description: | INTERLOCKED SOCKET |
| Harmonized System Code (HSCode): | 85366990 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
