In Stock Hot Product
4027082

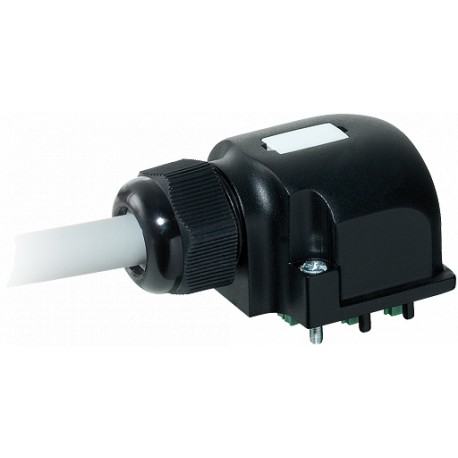

4027082 MURRELEKTRONIK Cap for Distribution Box M12 8-way 5-pole, potentially separated, 5m PUR/PVC-JB, 16x0..
$0.00USD
4341 in stock
Key Specifications
EAN:4048879058100
eClass:27143423
Outer Ø:12.5 mm ±5%
Cable number:404
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879058100 |
| eClass | 27143423 |
| Outer Ø | 12.5 mm ±5% |
| Cable number | 404 |
| Jacket Color | gray |
| Total current | max. 2× 8 A |
| Packaging unit | 1 |
| Wire isolation | PVC |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C) |
| Material (jacket) | PUR/PVC |
| country of origin | CZ |
| C-track properties | 1.5 Mio. |
| Dimensions H×W×D | 33×48×68 mm |
| Bend radius (fixed) | 10× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| No./diameter of wires | 16× 0.34 + 5× 0.75 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -30...+80 °C |
Product Description
CAPFOR D-BOX M12 8-WAY 5-POLEPot.-sep. 5m PUR/PVC-JB, 16x0,34+5x0,75
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
