In Stock Hot Product
4000-68000-1510000

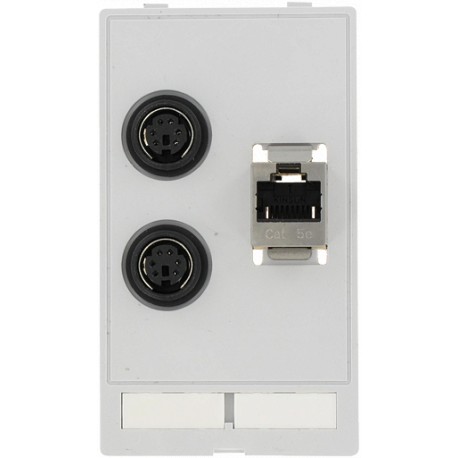

4000-68000-1510000 MURRELEKTRONIK MODLINK MSDD DATA INSERT, 1×RJ45 + 2×PS2 Buchse/soldering
$0.00USD
4089 in stock
Key Specifications
EAN:4048879037471
eClass:27189217
Weight::0.037 kg
Art.No.::4000-68000-1510000
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879037471 |
| eClass | 27189217 |
| Weight: | 0.037 kg |
| Art.No.: | 4000-68000-1510000 |
| Connection | Threaded hole M4 |
| No. of poles | 6-pole |
| Specification | CAT5e, Class D, 100 MHz, (EN 50173-1) |
| Packaging unit | 1 |
| Locking of ports | Snap In |
| Operating current | 1 A |
| Operating voltage | 30 V AC/DC |
| Tightening torque | 0.9 Nm ±0.1 |
| country of origin | DE |
| Connection rear side | RJ45 |
| Connection front side | RJ45 |
| customs tariff number | 85366990 |
| Dimensions H × W × D | 88×51×25 mm |
| Connection cross section | max. 0.5 mm² (AWG 20) |
| Operating current (UL Rating) | max. 175 mA |
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
