4000-68000-1110000

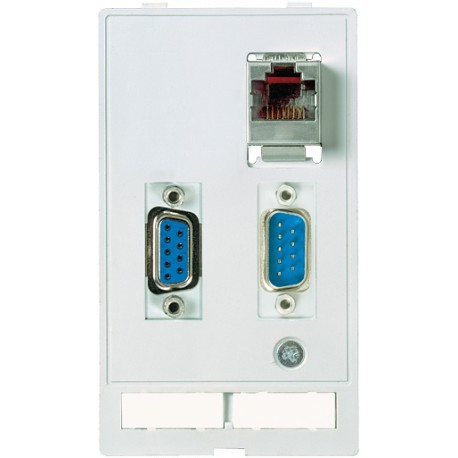

4000-68000-1110000 MURRELEKTRONIK MODLINK MSDD DATA INSERT, 1×SUB-D9 Buchse/Buchse + 1×SUB-D9 male/male + 1×..
$0.00USD
4684 in stock
Key Specifications
EAN:4048879037686
eClass:27189217
Weight::0.045 kg
Art.No.::4000-68000-1110000
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879037686 |
| eClass | 27189217 |
| Weight: | 0.045 kg |
| Art.No.: | 4000-68000-1110000 |
| No. of poles | 9-pole |
| Specification | CAT5e, Class D, 100 MHz, (EN 50173-1) |
| Packaging unit | 1 |
| Locking of ports | UNC 4...40 bolt |
| Operating current | 3 A |
| Operating voltage | 48 V AC/DC |
| country of origin | DE |
| Connection rear side | SUB-D (female) |
| Connection front side | SUB-D (female) |
| customs tariff number | 85366990 |
| Dimensions H × W × D | 88×51×21 mm |
| Operating current (UL Rating) | max. 175 mA |
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
Product Description
MODLINK MSDD DATAINSERT1×SUB-D9 fem./fem. + 1×SUB-D9 male/male + 1×RJ45
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
