3VT3763-3AA36-0AA0

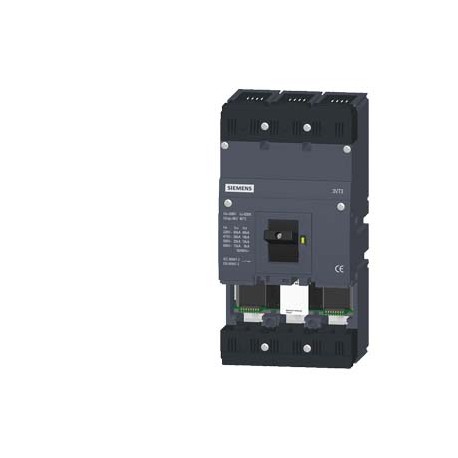

3VT3763-3AA36-0AA0 SIEMENS circuit breaker 3VT3 high breaking capacity Icu 65kA, 415V AC 3-pole circuit brea..
$0.00USD
3051 in stock
Key Specifications
:Value
EAN:4011209763173
UPC:Not available
Depth:117 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209763173 |
| UPC | Not available |
| Depth | 117 mm |
| Notes | Sucessor:Successor portfolio 3VA; further information via www.siemens.com/3VA |
| Width | 140 mm |
| Height | 275 mm |
| Group Code | P360 |
| net weight | 5.991 kg |
| Price Group | 193 |
| ● maximum | 70 °C |
| ● minimum | -40 °C |
| Metal Factor | LCP----- |
| Mounting type | fixed mounting |
| Product Group | 3749 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362090 |
| Product family | Not available |
| Usage category | A |
| Net Weight (kg) | 5,963 Kg |
| number of poles | 3 |
| Product function | |
| Country of origin | Czech Republic |
| Operating current | |
| Product component | |
| mounting position | with vertical mounting surface +/-180° rotatable, with vertical mounting surface +/- 30° tiltable to the front and back |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product is cancelled since: 01.10.2019 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● Trip indicator | No |
| Operating frequency | |
| Packaging Dimension | 166,00 x 286,00 x 169,00 |
| Product Description | circuit breaker 3VT3 high breaking capacity Icu=65kA, 415V AC 3-pole; circuit breaker w/o Electronic Trip Unit without auxiliary release without auxiliary/alarm switch |
| Product designation | 3VT1_5 molded case circuit breakers |
| Protection class IP | IP40 |
| ● 1 / rated value | 50 Hz |
| ● 2 / rated value | 60 Hz |
| ● Voltage trigger | No |
| ● Auxiliary switch | No |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| ● Overload protection | No |
| ● suitability for use | Contact unit without release |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF003977) | - |
| ● undervoltage release | No |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Number of poles (EF001391) | 3 |
| ● at 240 V / rated value | 75 kA |
| ● at 415 V / rated value | 36 kA |
| ● at 500 V / rated value | 20 kA |
| ● at 690 V / rated value | 15 kA |
| Size of the circuit-breaker | 3VT3 |
| Standard lead time ex-works | 15 Day/Days |
| Surcharge for Raw Materials | None |
| ● Ground fault protection | No |
| ● Phase failure detection | No |
| ● at 40 °C / rated value | 630 A |
| ● at 50 °C / rated value | 630 A |
| ● at 55 °C / rated value | 600 A |
| ● at 60 °C / rated value | 600 A |
| ● at 65 °C / rated value | 540 A |
| ● at 70 °C / rated value | 540 A |
| Package size unit of measure | MM |
| Operating frequency / maximum | 120 1/h |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Product Dimensions (W x L x H) | Not available |
| Motor drive optional (EF007386) | true |
| Continuous current / rated value | 630 A |
| Insulation voltage / rated value | 690 V |
| Design of the operating mechanism | toggle handle |
| Motor drive integrated (EF006697) | false |
| Type of control element (EF006976) | Rocker lever |
| Ambient temperature / during storage | |
| Degree of protection (IP) (EF005474) | IP40 |
| Article Number (Market Facing Number) | 3VT3763-3AA36-0AA0 |
| Performance class for circuit breaker | H |
| Rated permanent current Iu (EF001389) | 630.0 |
| With under voltage release (EF007518) | false |
| Ambient temperature / during operation | |
| Surge voltage resistance / rated value | 8 kV |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With switched-off indicator (EF007006) | false |
| Product extension / optional / motor drive | Yes |
| Overload release current setting (EF002336) | ['-', '-'] |
| Type of the driving mechanism / motor drive | No |
| ● Reference code / acc. to DIN EN 81346-2 | Q |
| ● reference code / acc. to DIN EN 61346-2 | Q |
| Integrated earth fault protection (EF007296) | false |
| ● Suitability for use / Disconnecting means | Yes |
| ● undervoltage release with leading contact | No |
| Number of CO contacts / for auxiliary contacts | 0 |
| Number of NC contacts / for auxiliary contacts | 0 |
| Number of NO contacts / for auxiliary contacts | 0 |
| Complete device with protection unit (EF008906) | true |
| Electrical endurance (switching cycles) / typical | 5 000 |
| DIN rail (top hat rail) mounting optional (EF008904) | true |
| Mechanical service life (switching cycles) / typical | 20 000 |
| Maximum short-circuit current breaking capacity (Icu) | |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | true |
| Type of electrical connection / for main current circuit | screw-type terminals |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Operational short-circuit current breaking capacity (Ics) | |
| Position of connection for main current circuit (EF006671) | Front side |
| Adjustment range undelayed short-circuit release (EF007131) | ['-', '-'] |
| ● for neutral conductors / Short-circuit and overload proof | No |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Arrangement of electrical connectors / for main current circuit | front side |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] |
| Derating temperature / for the rated value of the continuous current | 55 °C |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 65.0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.11.2007 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 25 W |
| General Product ApprovalDeclaration of ConformityTest CertificatesotherType Test Certificates/Test ReportMiscellaneousManufacturer Declaration | General Product Approval |
